Products Description
38kg heavy steel rail are mostly used for the transportation of larger mine roadways and factory workshops, crane hoisting equipment, and the laying of special railway lines.
Specification:
Size: 38kg/m
Length: 12m~25m or other length according to customers' requirement
Material: 50Mn, U71Mn
Standard: GB2585-2007
| Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 38kg | 134 | 114 | 68 | 13.0 | 38.730 |
| 43kg | 140 | 114 | 70 | 14.5 | 44.653 |
| 50kg | 152 | 132 | 70 | 15.5 | 51.514 |

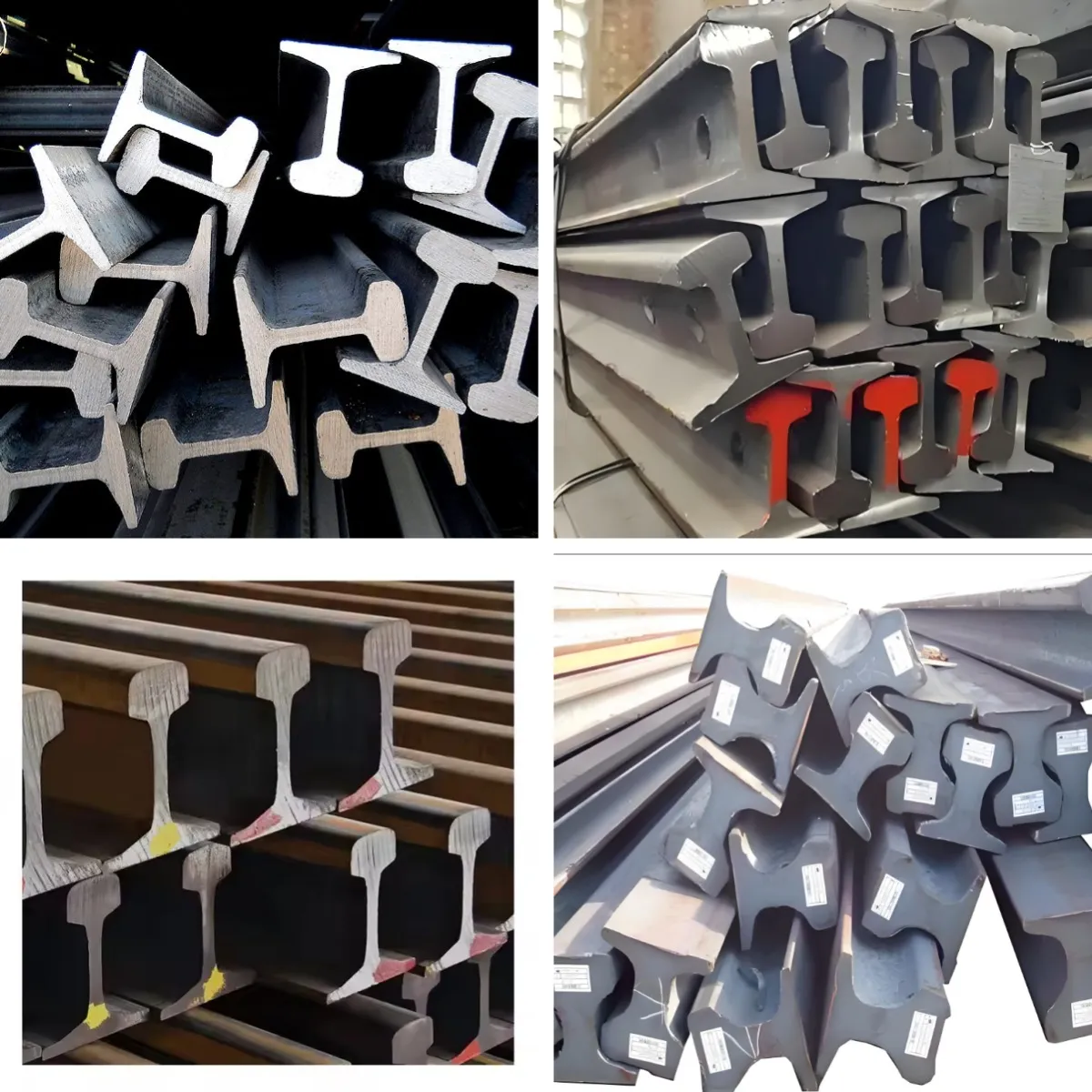

Carbon Steel Heavy Series Rail
Other Features
Application features:
Strong load-bearing capacity: able to withstand a driving weight of about 10 to 15 tons (specific load-bearing capacity depends on wheel pressure and span), suitable for situations that require bearing large loads.
Good stability: Due to its large cross-section, the 38KG heavy rail has good stability, which can ensure the smoothness and safety of the train during operation.
Good wear resistance: Specially treated carbon steel material has good wear resistance and can extend the service life of the track.

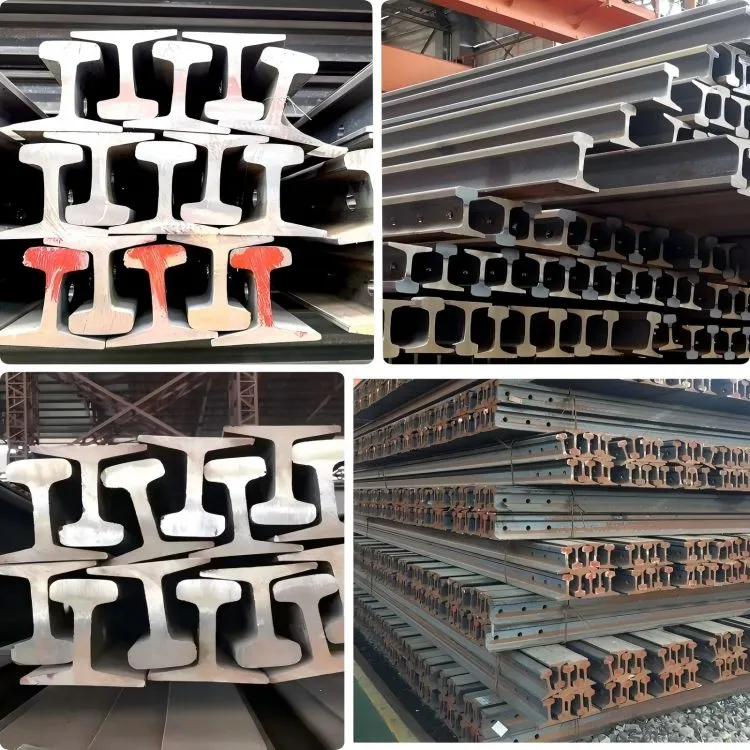

GB Carbon Steel Heavy Series Rail
About Us
Our services include providing customers with global procurement and supply services for various commodities, helping them find the highest quality and most cost-effective products.
Customize solutions for customers, tailor products, packaging, and logistics solutions according to customer needs, ensuring delivery meets customer standards.

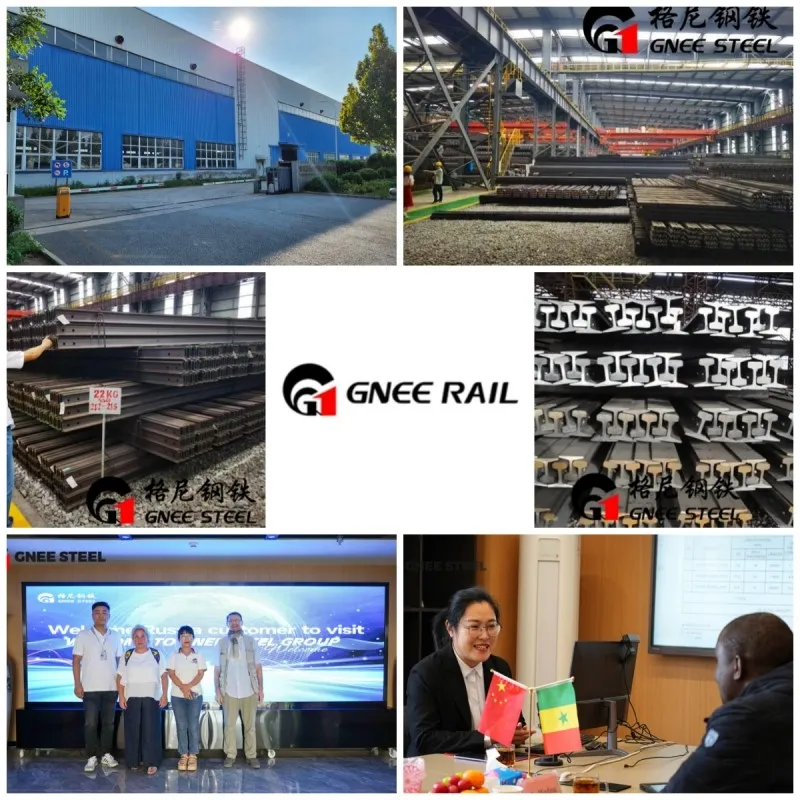

Our Company
