Products Description
Railroad rails, as key components of railway tracks and crane tracks, are responsible for guiding the wheels of locomotives and cranes. They not only bear the huge pressure of the wheels, but also effectively transfer this pressure to the sleepers or track beams. The mission of rails is to provide a continuous, smooth and least resistant rolling surface to ensure the smooth operation of locomotives and cranes. In electrified railways or automatic block areas, rails even play the role of track circuits, bearing the operating pressure and impact loads of locomotives and cranes.
We produce GB standard light rail with high quality and competitive prices. Light rails are mainly used for brick factory, processing plant, coal mining, engineering machinery, equipment, etc.
Products Description
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 50kg | 51.514 | 50Mn/U71Mn | 12m/12.5m |

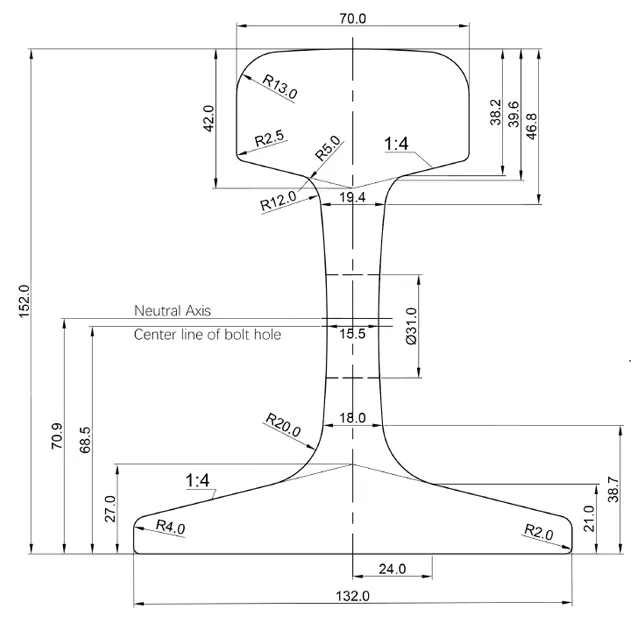

| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 152 | 132 | 70 | 15.5 |
Production process：
Application Scenario：
Testing Laboratory:
Company Information
in one-stop service
GNEE has established a mature logistics supply chain system and has long-term cooperation with many international freight forwarding companies. It supports multiple modes such as sea transportation, rail transportation, and multimodal transportation to ensure rapid shipment of goods and help customers advance engineering construction projects on schedule.
+
