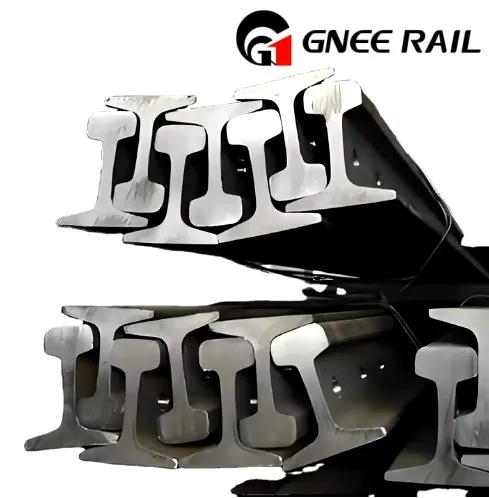

Chinese Standard 9Kg Light Steel Rail
Chinese Standard 9kg Light Steel Rail, commonly known as the 9kg rail, is a lightweight railway track designed for low-speed and light rail applications. It conforms to Chinese national standards and weighs 9 kilograms per meter, making it suitable for tramways, industrial railways, and other light rail systems. We GNEE rail specialize in light and heavy rail production, crane tracks, and foreign standard tracks, along with railway accessories like rail pads and rubber pads. Our comprehensive production and inspection capabilities reflect our commitment to "technology, integrity, quality, and community service." Please reach out for any requirements!
Chinese Standard 9Kg Light Steel Rail specification
| Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 8kg | 65 | 54 | 25 | 7 | 8.42 |
| 9kg | 63.5 | 63.5 | 32.1 | 5.9 | 8.94 |
Chinese Standard 9Kg Light Steel Rail drawing
