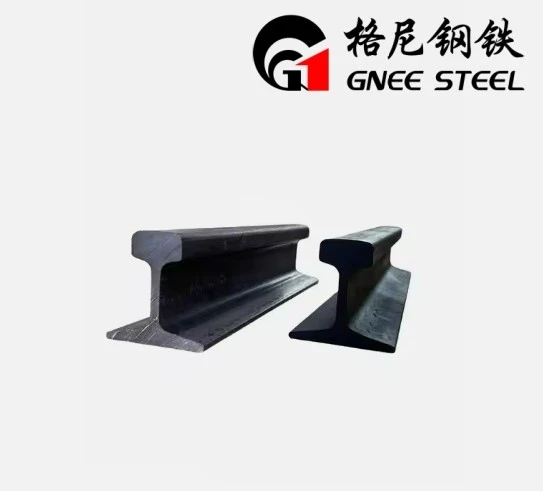

DIN536 A100 Rail Dimension
The A100 Rail is specifically designed to provide robust performance in industrial and railway applications, featuring dimensions that ensure stability and strength. It has a rail height of 95 mm and a bottom width of 200 mm, creating a solid foundation for supporting heavy loads. The head width measures 100 mm, while the web thickness is 60 mm, enhancing its durability and structural integrity. Weighing 74.30 kg/m, the A100 rail is well-suited for various heavy-duty material handling and transportation systems, delivering reliable and consistent performance in demanding environments. GNEE rail is a reliable and professional steel rail supplier, we can supply all kinds of steel rails compliance with international standard, if you have any needs, feel free to contact us.
DIN536 A100 Rail Dimension
Size: A100
Rail height (mm): 95
Bottom Width (mm): 200
Head Width (mm): 100
Web Thickness (mm): 60
Weight (kg/m): 74.30
DIN536 A100 Rail profile
