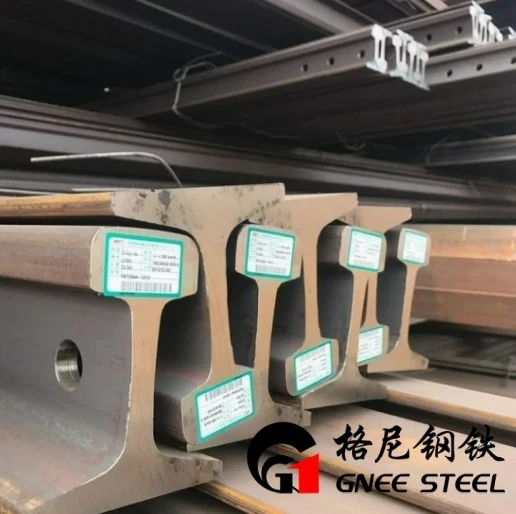

EN 55E1 Railroad Rail
The EN 55E1 railroad rail, commonly referred to as "European standard 55E1 rail," adheres to the EN 13674-1 standard, which outlines the technical specifications for steel rails used in railway applications. This rail type is characterized by its specific profile dimensions and weight, making it suitable for heavy traffic and high-speed services. GNEE Rail stands out as a professional supplier of steel rails, delivering products that comply with international standards like Arema, JIS, UIC, BS, GB, and EN. Our facility features cutting-edge equipment and strong technical capabilities, coupled with strict quality control practices. We operate under the motto of "quality for survival, reputation for development, and service for efficiency," ensuring our production meets industry norms and customer expectations. For any inquiries, please reach out to us.
EN 55E1 Railroad Rail Dimensions
| Size | Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m) |
| 54E3(DINS54) | 154.00 | 125.00 | 67.00 | 16.00 | 54.57 |
| 54E4 | 154.00 | 125.00 | 67.00 | 16.00 | 54.31 |
| 54E5(54E1AHC) | 159.00 | 140.00 | 70.20 | 16.00 | 54.42 |
| 55E1 | 155.00 | 134.00 | 62.00 | 19.00 | 56.03 |
EN 55E1 Railroad Rail drawing
