Products Description
12kg steel rails have high tensile and bending strength, and can withstand large train loads.
1.Wear resistance: It has high surface hardness, good wear resistance, and long service life.
2.Corrosion resistance: The material contains certain alloying elements and has good corrosion resistance.
3.Lightweight: Compared to traditional railway tracks, 12kg steel rails are lighter and easier to lay and install in complex terrains and limited spaces.
4.Strong adaptability: able to adapt to various rail transportation needs, widely used in rail transit systems such as railways, subways, and light rails.
The specific specifications and parameters of 12kg steel rails are as follows:
Rail height: 69.85 millimeters
Bottom width: 69.85 millimeters
Head width: 38.1 millimeters
Waist thickness: 7.54 millimeters
Theoretical weight: 12.2 kg/m

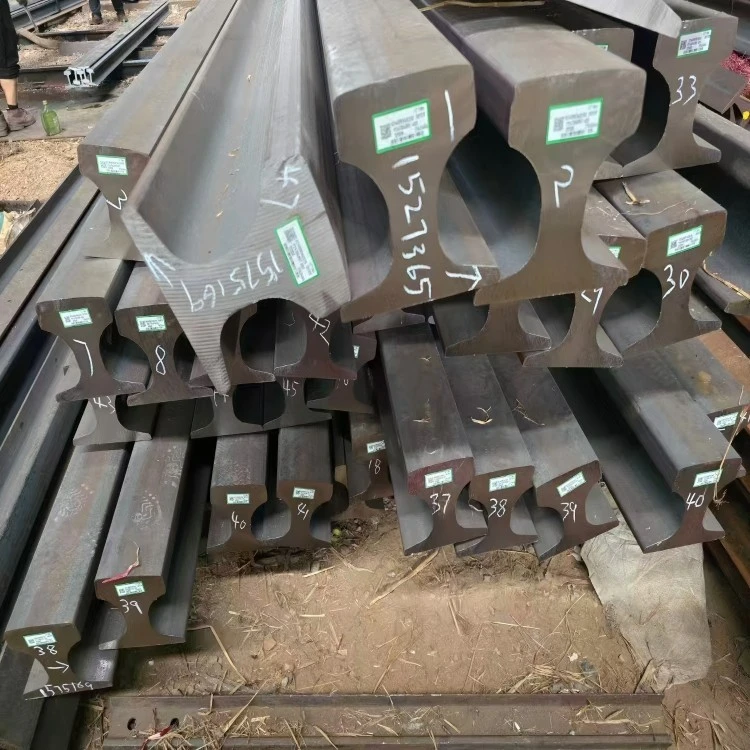

12kg steel rails
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 12Kg | 12.20 | Q235 | 6m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 69.85 | 69.85 | 38.1 | 7.54 |
Other Features
12kg steel rails are widely used in China's railway, subway, light rail and other rail transit systems, including high-speed railways, ordinary railways, urban rail transit, etc. Meanwhile, due to its lightweight and wear resistance, it is also commonly used in mining environments and has become an ideal choice for mining transportation.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
About Us
Since its establishment in 2008, our company has been committed to providing high-quality steel rail products. After 18 years of continuous efforts and development, our products have been exported to more than 160 countries and regions around the world. Our steel rail products are widely used in various fields such as railways, urban rail transit, ports, and mines. The high strength, wear resistance, and corrosion resistance of the product have been unanimously recognized by customers worldwide. We strictly control every production process to ensure that every steel rail meets international quality standards.
