Products Description

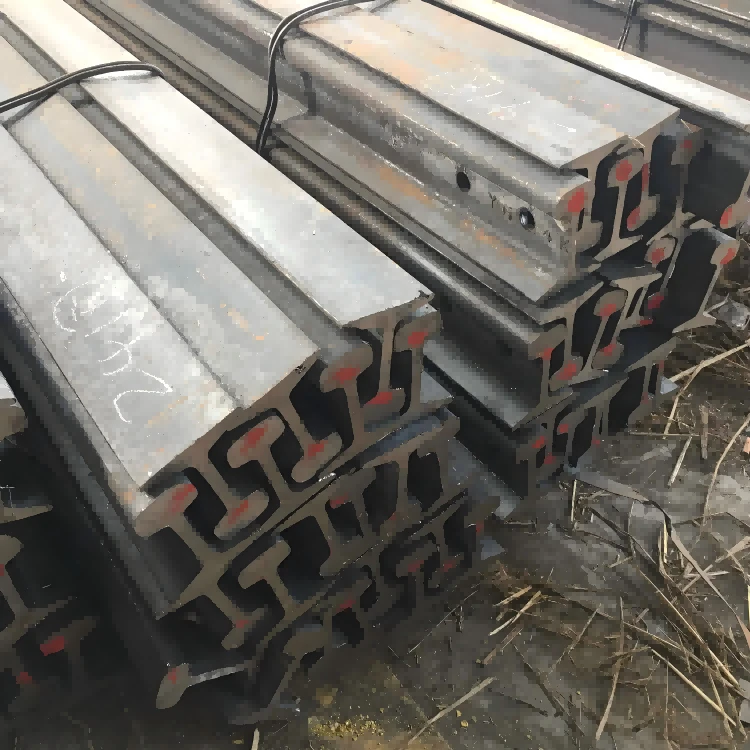

Compared to traditional heavy-duty steel rails (such as 43kg, 50kg, etc.), 22kg light steel rail has a lighter weight and is suitable for carrying lighter vehicles or short distance transportation routes. It is mainly used in situations where low load-bearing capacity is required.
The weight of the 22kg light steel rail is 22 kilograms per meter, which means it is lighter than heavier rails and suitable for low strength, light load track systems.
This type of light steel rail meets certain standards and design requirements, usually in a U-shaped or other track design suitable for light transportation. It is suitable for railway projects with low load-bearing capacity and load requirements.
Parameters Of 22kg Light Rail
| Parameters Of 22kg Light Rail | |||
| type | weight (kg/m) | material | length (m) |
| 22Kg | 22.30 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 93.66 | 93.66 | 50.8 | 10.72 |
Other Features
22kg light rail is suitable for some light railways or short distance railways, usually used for low-speed transportation lines. For example, urban light rail, industrial park railway, small-scale mining railway, agricultural transportation, etc.
In some urban transportation networks, especially light rail systems, 22kg light rail can be used for lighter vehicle transportation.
Some tourist railways or railway systems within scenic spots often use 22kg light rail to meet the demand for light transportation.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
