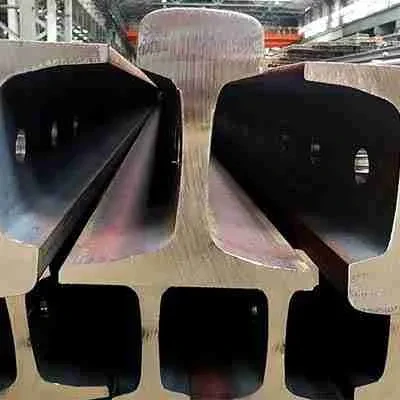

GB Standard Heavy Type Steel Rail 38kg

GB Standard Heavy Type Steel Rail 38kg

The GB standard 38kg heavy rail refers to steel rails produced according to China's national standard (GB standard), with a weight of 38 kilograms per meter.
Send Inquiry
Chat Now
Description
Technical Parameters





Products Description





38kg heavy rails are one of the common standard rail types in the railway system and are suitable for higher-intensity transportation needs.

Heavy rails are usually thicker and heavier, and can withstand greater pressure and impact. 38kg heavy rails have the characteristics of strong bearing capacity. Due to their large unit weight, this type of rail can withstand large train loads and is often used in busy freight railways.



This type of heavy rail is suitable for all kinds of railway transportation, including freight and heavier passenger trains. Heavy rails are designed to be more robust and can maintain good performance and resist wear and fatigue over long periods of use. 38kg heavy rails have become standard specifications in the railway systems of some countries and regions, with wide application and technical support.





Parameters of 38kg Heavy Rail
type weight (kg/m) material length (m)
38kg 38.733 50Mn/U71Mn 12/12.5m
rail height (mm) bottom width (mm) head width (mm) web thinkness (mm)
134 114 68 13



GB Standard Heavy Type Steel Rail 38kgGB Standard Heavy Type Steel Rail 38kg



Heavy Steel Rail



Heavy Steel Rail Size Rail Height Bottom Width Head Width Web Thickness Weightkg/m
38kg 134 114 68 13 38.733
43kg 140 114 70 14.5 44.653
50kg 152 132 70 15.5 51.514
60kg 176 150 73 16.5 60.8
75kg 192 150 75 20 74.64

GB Standard Heavy Type Steel Rail 38kg

GB Standard Heavy Type Steel Rail 38kg

GB Standard Heavy Type Steel Rail 38kg

GB Standard Heavy Type Steel Rail 38kg
