Products Description
Size specifications:
Height: Approximately 93mm (some data also show 93.66mm)
Bottom width: 93mm
Head width: 50.8mm
Waist thickness: 10.72mm
| Size | DIMENSIONS (mm) | WEIGHT (kg/m) | |||
|---|---|---|---|---|---|
| A | B | C | t | ||
| GB 6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 |
| GB 9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 |
| GB 12KE | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 |
| GB 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 |
| GB 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 |
GB Standard Steel Railway
Other Features
22KG steel rails are mainly used for laying temporary transportation lines and light locomotive lines, while other weights of steel rails are more commonly used for formal railway lines or heavy-duty transportation lines. Due to weight and size limitations, the load-bearing capacity of 22KG steel rails is relatively low. It is mainly used for carrying lightweight trains or mining cars, and is not suitable for high-speed trains or heavy-duty trains.

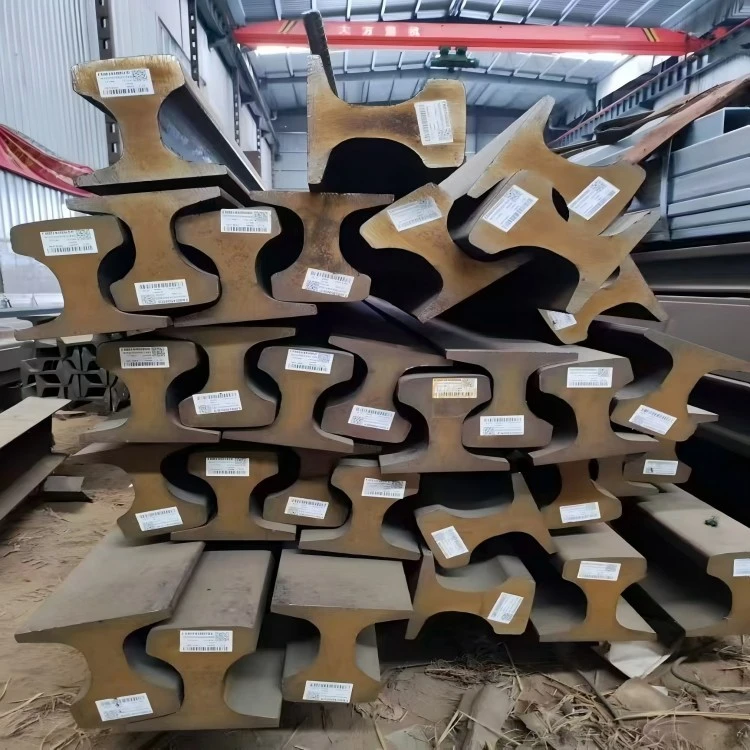

GB Steel Railway Metal 22kg
FAQ
Q: What is the difference in weight between this type of rail and other rails?
A: Compared with other weights of rails (such as 38kg/m, 43kg/m, 50kg/m, 60kg/m, 75kg/m, etc.), 22KG rails are lighter in weight and smaller in size. This makes it more applicable and flexible in certain specific situations, such as forest areas, mining areas, etc.
Q: What is the difference between the load-bearing capacity of this type of rail and other rails?
A: Due to weight and size limitations, the load-bearing capacity of 22KG steel rails is relatively low. It is mainly used for carrying lightweight trains or mining cars, and is not suitable for high-speed trains or heavy-duty trains.
