Products Description
Light rail refers to steel rails with a nominal weight of less than or equal to 30kg per meter. The lightweight 22kg track is a steel rail with a specific weight of 22kg/m in this category.
Steel rails are classified into light rail and heavy rail based on their weight per meter. Light rail is mainly used for light or temporary transportation lines, while heavy rail is used for heavy-duty or long-term railway lines.22kg light rail can be used for as mining industry and railway track.
Specification:
Size: 22kg/m
Length: 5-12m or other length according to customers' requirement
Material: Q235B, 55Q
Standard: GB/T11264-2012

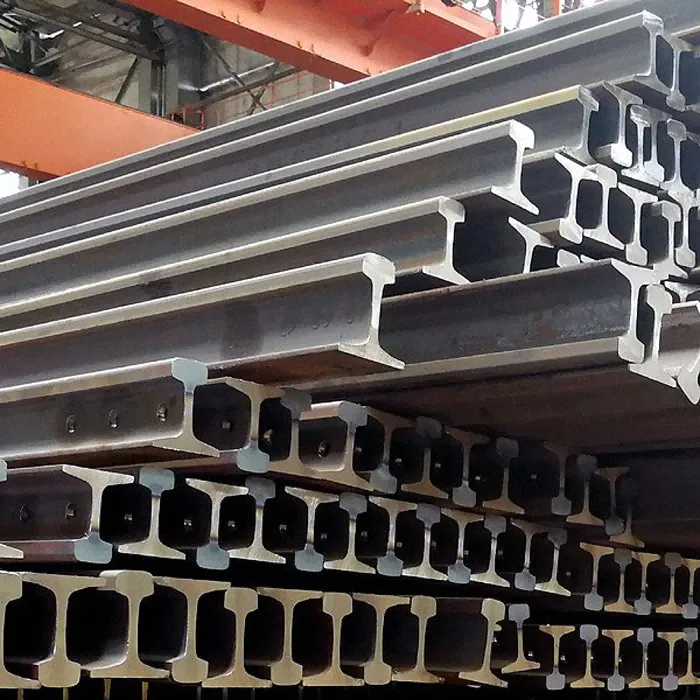

GB Steel Rails 22KG
| Parameters Of 22kg Light Rail | |||
| type | weight (kg/m) | material | length (m) |
| 22Kg | 22.30 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 93.66 | 93.66 | 50.8 | 10.72 |
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 |
Chinese standard steel rails
Railway rails
Common specifications and size table
(1) Light rail model:
texture of material: Q235,55Q
Specifications: 30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12 kg/m, 8 kg/m.
(2) Heavy duty rail model:
texture of material: 45MN,71MN
Specifications: 50kg/m, 43kg/m, 38kg/m, 33kg/m.
(3) Crane rail model:
texture of material: U71MN
Specifications: QU70kg/m ,QU80kg/m,QU100kg/m,QU120 kg /m.
Train tracks
About Us
Our company's steel rail products have received high praise from new and old customers, and our steel rail sales have maintained a strong growth momentum, winning a good reputation in the railway steel rail sales industry. Our company has a young, dynamic, service-oriented, and high-quality management team, as well as our own independent steel rail production factory. As of now, our company has customers from all over the world who have a demand for steel rails.
Our Company
FAQ
Q: How to keep the track bed around the steel rail clean?
A: Timely clean up the debris and gravel attached to the steel rail to prevent the growth of weeds from affecting the steel rail and track bed.
Q: When can the shipment be made?
A: About 7-14 days, we will definitely ship as soon as possible.
Q: What is the price of your steel rails?
A: Our steel rail prices vary depending on specifications, quantities, materials, and transportation conditions. To obtain an accurate quote, please provide detailed order requirements or contact the sales team.
Q: What payment methods do you offer?
A: We support multiple payment methods, including wire transfer (T/T), letter of credit (L/C), and PayPal. Specific payment methods can be confirmed through communication with us.
Q: What are the advantages of your steel rails?
A: Our steel rails are made of high-quality steel with excellent characteristics such as wear resistance, compression resistance, and corrosion resistance, suitable for various extreme environments. We also provide timely customer service to ensure that customer needs are fully met.
