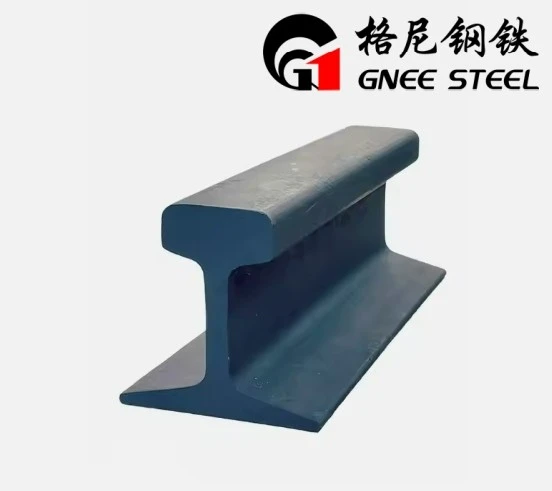

JIS 22KG Steel Rail Profile
JIS 22KG Steel Rail is a specific type of steel rail that conforms to the Japanese Industrial Standards (JIS). It is commonly referred to as "JIS 22kg rail" or "JIS 22kg light rail." This rail weighs 22.30 kg/m and has a height of 93.66 mm. It features a bottom width of 93.66 mm, a head width of 50.80 mm, and a web thickness of 10.72 mm. We specialize in light, heavy, and crane rails, as well as rail accessories and profiles. Our light rails vary from 8kg to 30kg, while heavy rails range from 38kg to 60kg. Crane rails are available in QU70, QU80, QU100, and QU120 specifications. All products are sourced from leading domestic steel mills, ensuring excellent quality at competitive prices. Our well-equipped facilities provide storage and processing services, including cutting, straightening, drilling, and bending, tailored to customer needs.
JIS 22KG Steel Rail dimension
| Size
* |
Rail height(mm)
A |
Bottom Width(mm)
B |
Head Width(mm)
C |
Web Thickness(mm)
t |
Weight(kg/m)
* |
| 9kg | 63.50 | 63.50 | 32.10 | 5.90 | 8.94 |
| 10kg | 66.67 | 66.67 | 34.13 | 6.35 | 10.10 |
| 12kg | 69.85 | 69.85 | 38.10 | 7.54 | 12.20 |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.20 |
| 22kg | 93.66 | 93.66 | 50.80 | 10.72 | 22.30 |
JIS 22KG Steel Rail Profile
