Products Description
8kg light rail is a type of rail suitable for light rail transit systems and is a standard specification for railway tracks. This' 8kg 'refers to a weight of 8 kilograms per meter of steel rail. 8kg steel rails are mainly used for light urban rail transit systems with light loads, low traffic flow, or less demanding track load requirements, such as light rail, trams.
The unit weight of 8kg lightweight steel rails is 8 kilograms per meter, which means that the weight of each track is relatively light and suitable for low load, low-speed transportation needs. Compared to heavy-duty railway rails, 8kg rails are lighter and more flexible.
8kg steel rails are usually made of high-strength alloy steel, which has undergone special processing to ensure sufficient bending resistance, compression resistance, and wear resistance.
The specifications, dimensions, and shapes of the steel rails are designed and manufactured in accordance with relevant railway standards in China and internationally, ensuring compatibility with corresponding track beds, bogies, and other equipment.

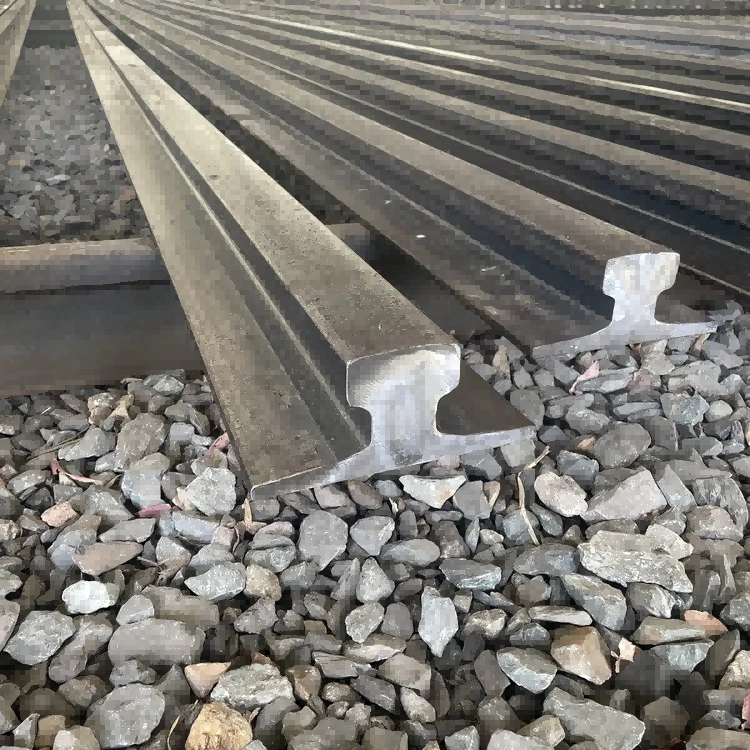

Light Steel Rail YB222 8kg
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 8Kg | 8.42 | Q235 | 6m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 65 | 54 | 25 |
7 |
Other Features
8kg light rail usually has a "U" - shaped cross-section with a wider bottom, which is used to better distribute pressure under the track. The surface of the steel rail has undergone special treatment, which has good wear resistance and corrosion resistance, extending its service life.
The steel rails are connected through joints, usually using rail bolts or welding connections. These joints must be kept tight to ensure the stability and safety of the track.
8kg light rail usually uses concrete or gravel trackbeds, which can provide sufficient support to keep the light rail stable during operation.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 |
