Products Description
18kg light rail is a type of rail that weighs 18 kilograms per meter and belongs to the category of light rail. Light rail refers to steel rails with a weight of less than or equal to 30 kilograms per meter, mainly used for laying temporary transportation lines or light locomotive lines, such as in forest areas, mining areas, factories, and construction sites.
With a weight of 18 kilograms per meter, it is lighter and easier to transport and install compared to heavy rails (weighing over 30 kilograms per meter).
Moderate size:
Height: 90 millimeters
Bottom width: 80 millimeters
Head width: 40mm
Waist thickness: 10mm

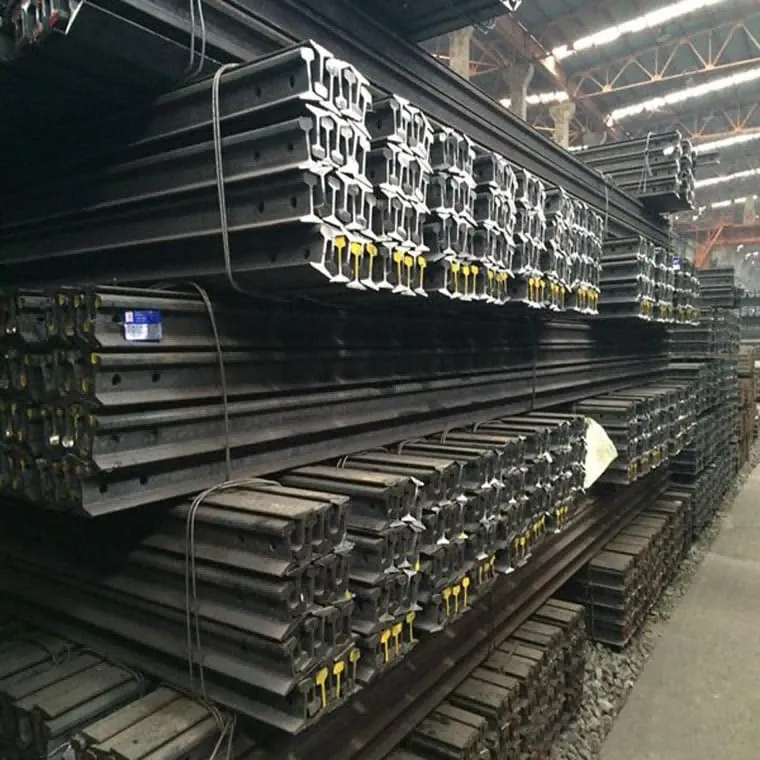

YB222 18kg Steel Rail 55Q
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 18Kg | 18.06 | 55Q | 6-8m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 90 | 80 | 40 | 10 |
Other Features
Comparison with other steel rails:
Compared with heavy-duty rails: Heavy duty rails (such as 50kg and 60kg rails) have stronger load-bearing capacity and are suitable for main and high-speed railways, while 18kg rails are mostly used for lighter load lines and are not suitable for high passenger flow or high-speed railways.
Comparison with medium-sized rails: The load-bearing capacity of 18kg rails is slightly weaker than that of medium-sized rails (such as 30kg and 43kg rails), and their applicability is relatively narrow. However, their cost is lower and they are suitable for railway systems with low load and low frequency of use.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
About Us
GNEE (Tianjin) Multinational Trade Co., Ltd.
Since its establishment, our company embarked on the journey of steel rail foreign trade in 2008 and has gone through more than ten years. With a profound understanding and relentless pursuit of the steel rail industry, we have grown into a leader in the industry, contributing solid strength to global railway construction.
Over the years, we have won the trust and support of more than 8000 customers worldwide with our high-quality products and services. These clients are spread across various industries, from large railway construction groups to small railway maintenance enterprises, all of whom are our partners.
