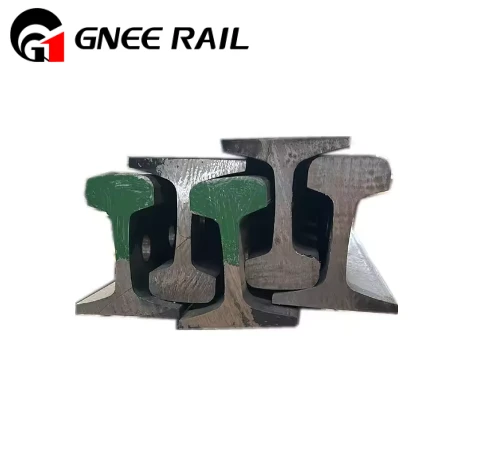

UIC 60kg Rail
UIC 60kg rail is a standard railway track conforming to the specifications of the International Union of Railways (UIC). The designation "60kg" signifies a net weight of 60 kilograms per meter. This type of track is commonly used in railway systems, including high-speed railways, urban transit, and other rail transport systems.
GNEE Rail provides a wide range of steel rails, encompassing light rail, heavy rail, and crane rail. Our customization services are designed to accommodate individual customer needs effectively. Don't hesitate to reach out to us for further inquiries or your specific needs.
Drawing
Dimensions
| Type | Head Width(mm) | Rail Height(mm) | Base Width(mm) | Web Thickness(mm) | Weight(kg/m) |
|---|---|---|---|---|---|
| UIC 60kg Rail | 172 | 150 | 74.3 | 16.5 | 60.21 |
Mechanical Properties
| Property | Value |
|---|---|
| Standard Length | 12.19 m |
| 13.72 m | |
| Calculated Mass (kg/m) | 60.6 |
| 0.2% Proof Stress (MPa) | 420 |
| Tensile Strength (MPa) | 880 |
| % Elongation | 5.65 √So8 |
| Surface Hardness (H.B) | 260 |
Chemical Composition (%)
| Element | Range |
|---|---|
| Carbon | 0.65 - 0.82% |
| Silicon | 0.15 - 0.58% |
| Manganese | 0.70 - 1.25% |
| Phosphorus | ≤ 0.025% |
| Sulfur | ≤ 0.025% |
