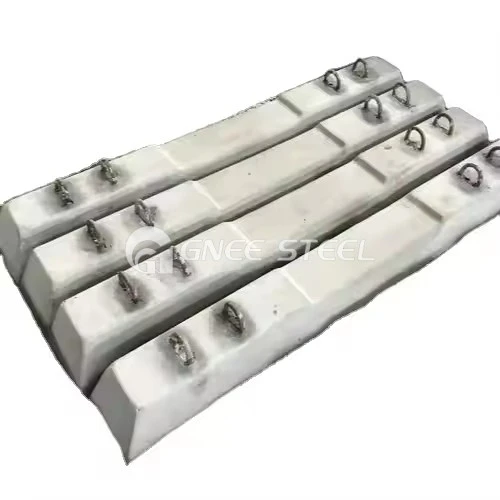

Railway Track Concrete Sleeper For Sale

Railway Track Concrete Sleeper For Sale

Railway Track Concrete Sleeper For Sale Railway track concrete sleeper, also known as concrete railway tie, are made from high-strength reinforced concrete and are designed to support and secure the rails, ensuring the stability and alignment of the track. Concrete sleepers are preferred over...
Send Inquiry
Chat Now
Description
Technical Parameters

Railway Track Concrete Sleeper For Sale



Railway track concrete sleeper, also known as concrete railway tie, are made from high-strength reinforced concrete and are designed to support and secure the rails, ensuring the stability and alignment of the track. Concrete sleepers are preferred over traditional wooden sleepers for their superior durability, strength, and resistance to environmental factors such as moisture, pests, and decay.

In addition to their long service life and low maintenance needs, railway track concrete sleepers are also more environmentally friendly compared to wooden alternatives, as they are not affected by issues such as rot or insect damage.

GNEE Rail is a trusted and skilled exporter of railway fasteners with more than ten years of experience in global trade. We offer an array of top-tier products, such as rail clips, concrete sleepers, composite sleepers, wooden sleepers, and fishplates. Our products are successfully exported to more than 60 countries. At GNEE Rail, we prioritize providing high-quality and reliable railway equipment tailored to meet the needs of our customers in the construction, maintenance, and upgrade of railway systems, ensuring every project is supported by durable, high-performance materials.

Railway Track Concrete Sleeper specification



Product name: Concrete Railroad Sleeper

Material: Prestressed concrete and steel bars

Size: Customers' drawings

Standard: UIC, DIN, AREA, BS, GOST, JIS

Rail type: 8kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24kg/m, 30kg/m, 38kg/m, 43kg/m, 50kg/m, 60kg/m etc

Rail gauge: 1435mm,1067mm,1520mm

Sleeper Accessories: bolts, screws, bushings,clamps, rubber plates and etc

Axle Load: Max 25t

Railway Track Concrete Sleeper technical parameters



Type

Width

Thickness

Length

Normal sleepers

220mm

160mm

2500mm

Turnout sleepers (Normal)

220mm

160mm

2600 ~ 4850mm,

with 150mm carry a total of 16 lengths

Turnout sleepers (Standard)

240mm

160mm

2600 ~ 4800mm,

with 200mm carry a total of 12 lengths

Bridge sleepers

220mm

240,260,280,300 mm

3000mm



Railway Track Concrete Sleeper For Sale



Concrete Railway Sleepers Supplier Concrete Railway Sleepers For Sale

Pre-Stressed Concrete Sleepers Manufacturing ProcessConcrete Railway Sleepers
