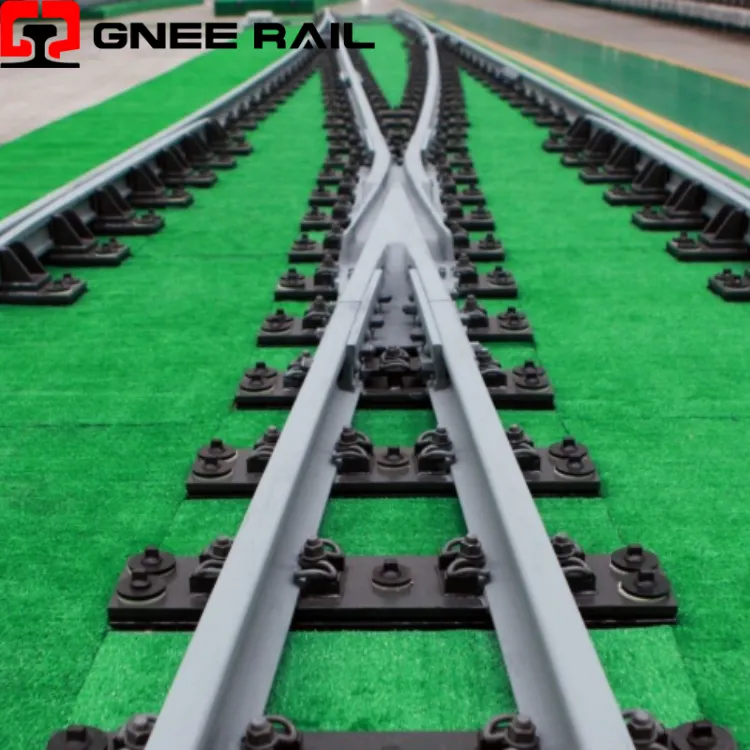

UIC60 Rail Turnout
UIC60 Rail Turnout meets international specifications for railway systems with a gauge of 1435 millimeters. In accordance with the globally accepted UIC60 standard. GNEE specializes in the production of various railway turnouts, feel free to contact us.
UIC60 Rail Turnout Parameter
|
Model |
Gauge (millimeter) |
Frog number |
Curve radius (meter) |
Total weight (kg) |
|
DK612-2-3 |
600 |
No.2 |
34000 |
311 |
|
DK612-3-6 |
No.3 |
66100 |
515 |
|
|
DK612-4-12 |
No.3 |
126800 |
573 |
|
|
DK612-5-15 |
No.5 |
157400 |
|
|
|
DK615B-2-3 |
No.2 |
34000 |
|
|
|
DK615B-3-6 |
No.3 |
66100 |
|
|
|
DK615B-4-12 |
No.4 |
126800 |
|
|
|
DK615B-5-15 |
No.5 |
157400 |
|
Rail Turnout Types
|
Type |
Description |
|
Single Turnout |
Single set of points allowing trains to change tracks |
|
Split Turnout |
Divided set of points for track branching |
|
Non-Symmetrical Split Turnout |
Split turnout with asymmetrical configuration |
|
Double-Curve Turnout in Same Direction |
Two curves diverging in the same direction |
|
Double-Curve Turnout in Opposite Direction |
Two curves diverging in opposite directions |
|
Run-Over Type Turnout |
Design allowing trains to run over the turnout |
|
Diamond Crossing |
Intersection of two tracks forming a diamond shape |
|
Crossover |
Crossing of two tracks |
|
Scissors Crossing |
Complex arrangement allowing multiple tracks crossing |
|
Single Slip Switch |
Single set of points with a slip portion |
|
Double Slip Switch |
Dual sets of points with slip portions |
|
Mixed Gauge Turnout |
Turnout accommodating different track gauges |
Turnout Installation Inspection Standard
Ensure that the screws securing the switch installation device are tightly fastened, and the device should be free from any existing damage or cracks.
Inspect each connecting rod and the lock device for any pre-existing damage, such as cracks, corrosion, or abrasion. Ensure that bar mill cards and pin holes do not exceed 1 mm, and confirm good insulation.
GNEE, a reliable UIC60 rail turnout manufacturer
