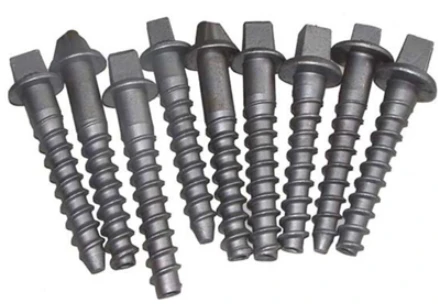

Screw Spike is a key fastening component in railway track fastening systems, used to securely fix rails onto wooden or concrete sleepers.
Q235 carbon steel offers good plasticity and weldability, suitable for general railway environments; 35# steel provides higher strength, wear resistance, and fatigue resistance, ideal for medium-load tracks; 45# steel offers superior strength and hardness, suitable for heavy-duty railways and high-stress applications. All materials can be treated with hot-dip galvanizing (HDG) to improve corrosion resistance and service life.
Concrete Sleeper Screw Spike Specification
| Brand | GNEE RAIL | |||
| Name | Concrete Sleeper Screw Spike | |||
| Type | Ss5.-150 | V20-135 | ||
| Ss8-140 | V23-115 | |||
| Ss8-150 | V23-135 | |||
| Ss8-160 | V23-155 | |||
| Ss23-160 | V23-215 | |||
| Ss25.-165 | V26-115 | |||
| Ss35.-161 | ||||
| Or the type by customers' drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | |||
GNEE RAIL manufactures these screw spikes using hot forging and precision thread rolling, with each batch tested for mechanical properties, dimensional accuracy, and corrosion resistance. The spikes meet UIC864-1, AREMA, DIN, GB and other international standards. Production follows ISO 9001:2015 quality management systems, ensuring product consistency and safety.
GNEE RAIL can supply various standards of railway screw spikes manufactured with international standards, such as BS, ATM, DIN and so on. GNEE has extensive experience in the rail industry and a high level of expertise in this specialized field. Any quantity is viable, big or small. And we can offer a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.
