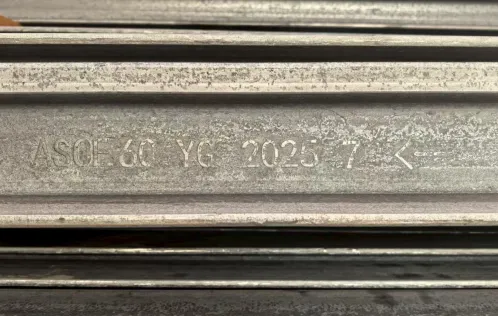

Rail ASCE 60, also known as 60 lb ASCE rail, is a medium-weight rail profile widely used in industrial and light railway systems. With stable asce 60 rail dimensions, accurate 60 lbs rail dimensions in mm, and a standard 60 lbs rail weight per meter (≈29.8 kg/m), it offers a balanced solution between load capacity and cost efficiency.
asce 60 rail dimensions:
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length (m) |
|---|---|---|---|---|---|---|---|
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
| ASCE 50 | 54 | 98.4 | 98.4 | 11.11 | 24.855 | 700 | 6-12 |
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
At GNEE RAIL, each asce 60 rail is produced with controlled rolling and strict inspection to ensure consistent geometry, reliable material performance, and smooth installation across different project environments.
What Are the Main Applications of 60 lb asce rail?
The 60 lb ASCE rail (29.76 kg/m) is a lightweight, T-section steel rail, manufactured to American Society of Civil Engineers standards, primarily used for industrial tracks, underground mining, light-duty crane runways, and automated warehouse systems. It is favored for its stability in smaller-scale transport systems.
Key Applications of 60 lb ASCE Rail:
- Industrial & Plant Trackage: Ideal for lighter-duty crane runways, factory tracks, and material handling systems.
- Mining and Tunneling: Commonly used for underground mining tracks to transport materials, providing durability for small, repetitive loads.
- Automated Warehouses: Frequently installed in warehouses as rails for automatic stacking cranes and storage retrieval systems.
- Light Rail Transit (LRT): Used in specialized, lower-traffic light cargo or urban rail transit systems.
- Port and Lifting Machinery: Suitable for use with smaller port cranes and auxiliary transportation equipment.
60 lb ASCE rail has a head width of 60.32 mm (2-3/8 inches) and a height of 107.95 mm (4-1/4 inches), providing a balance of strength and flexibility.
What is the material of a asce 60 rail?
ASCE 60 rail is typically manufactured from high-quality carbon steel or alloy steel according to ASTM A1/AREMA standards. Common material grades include Q235B, 55Q (high-manganese), and U71Mn alloy steel, chosen for their wear resistance, tensile strength (often
≥685–880 MPa), and suitability for light-duty, mining, and crane applications.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
| Mechanical Property | Chemical Composition (%) | |||||||||||||
| U71Mn | Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | |||||||||
| ≥390 | ≥40 | ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤0.030 | ≤0.030 | ≤0.250 | ≤0.250 | ≤0.250 | |||
Key Factors That Influence Application Selection
Selecting the right application for rail ASCE 60 depends on several practical factors.
Load level must match the 60 lbs rail weight per meter to avoid deformation or unnecessary cost. The asce 60 rail dimensions must be compatible with the track system to ensure proper installation. Material quality must support wear resistance and long-term durability.
When these factors are aligned, 60 lb ASCE rail delivers stable performance and efficient operation. GNEE RAIL provides technical support and flexible production to match rail specifications with real project conditions.
FAQ
- Where is 60 lb ASCE rail most commonly used?
It is widely used in industrial tracks, ports, logistics yards, and workshop systems.These environments require reliable performance under moderate load and frequent operation.
- Is ASCE 60 rail suitable for heavy-duty railway systems?
It is mainly designed for medium-duty applications.For heavy-haul or high-speed railways, heavier rail profiles are generally required.
- Can ASCE 60 rail be used for crane systems?
Yes, it is commonly used in light to medium crane applications.It provides stable support for repeated movement and dynamic loads.
- Why is ASCE 60 rail popular in industrial projects?
Because it balances strength and cost. The 60 lbs rail weight per meter is sufficient for most industrial applications.At the same time, it reduces material and installation cost compared to heavier rails.
- Can ASCE 60 rail be reused in different projects?
Yes, especially in temporary or flexible systems. Its moderate weight makes it easier to handle and relocate.Proper inspection is required before reuse to ensure performance.
- What should be confirmed before selecting ASCE 60 rail?
Load requirements, asce 60 rail dimensions, material quality, and installation conditions should all be verified.These factors ensure the rail meets both structural and operational needs.
GNEE RAIL supplies rail ASCE 60 with precise asce 60 rail dimensions, stable 60 lbs rail weight per meter, and accurate 60 lbs rail dimensions in mm. With consistent production, customized processing, and reliable quality control, different project requirements can be met efficiently. If application matching or technical confirmation is needed, you can contact us to get ASCE 60 rail solutions, and clear, practical support will be provided.
