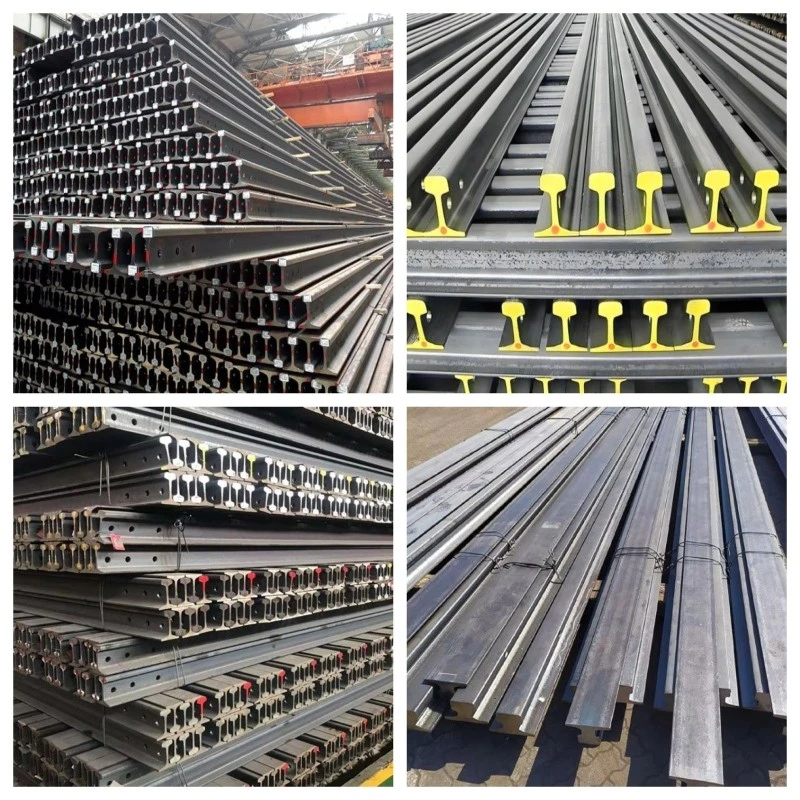

Steel rails are the foundation of railway tracks, providing stability, durability, and safety for train operations. Two of the most important specifications of steel rails are weight and length, as they directly determine rail strength, performance, and application. At GNEE RAIL, we supply steel rails (heavy rail,light rail,crane rail)of various weights and lengths to meet international railway standards.
Standard Rail Weight and Length:
Light Rail – Used in light-duty applications such as light rail transit and industrial tracks.
- Weight: 30–50 lbs/yd (14.9–24.8 kg/m)
- Length: 30–36 ft (9.1–11 m)
| Classification | Height(mm) | Head (mm) | Bottom (mm) | Thick(mm) | Weight (kg/m) | |
| Light Rail | 8 KG/M | 65 | 25 | 54 | 7 | 8.42 |
| 9 KG/M | 63.5 | 32.1 | 63.5 | 5.9 | 8.94 | |
| 12 KG/M | 69.85 | 38.1 | 69.85 | 7.54 | 12.2 | |
| 15 KG/M | 79.37 | 42.86 | 79.37 | 8.33 | 15.2 | |
| 18 KG/M | 80 | 40 | 80 | 10 | 18.06 | |
Standard Rail – Widely applied in mainline tracks and heavy-haul lines.
- Weight: 90–141 lbs/yd (44.6–70 kg/m)
- Length: 39–80 ft (11.9–24.4 m)
Heavy Rail – Designed for high-speed rail and heavy-haul transport.
- Weight: 136–175 lbs/yd (67.3–86.6 kg/m)
- Length: 80–120 ft (24.4–36.6 m)
| Classification | Height(mm) | Head (mm) | Bottom (mm) | Thick(mm) | Weight (kg/m) | |
| Heavy Rail | 38 KG/M | 134 | 68 | 114 | 13 | 38.733 |
| 43 KG/M | 140 | 70 | 114 | 14.5 | 44.653 | |
| 45 KG/M | 145 | 67 | 126 | 14.5 | 45.546 | |
| 50 KG/M | 152 | 70 | 132 | 15.5 | 51.514 | |
| 60 KG/M | 176 | 73 | 150 | 16.5 | 60.64 | |
At GNEE RAIL, we not only provide steel rails in different grades, weights, and lengths but also offer rail fastening systems, fishplates, rail clips, baseplates, and crane rail clips etc. With customized solutions and technical support, we ensure our products meet the diverse requirements of global railway projects.
