↵Rail Clamp Fastening System

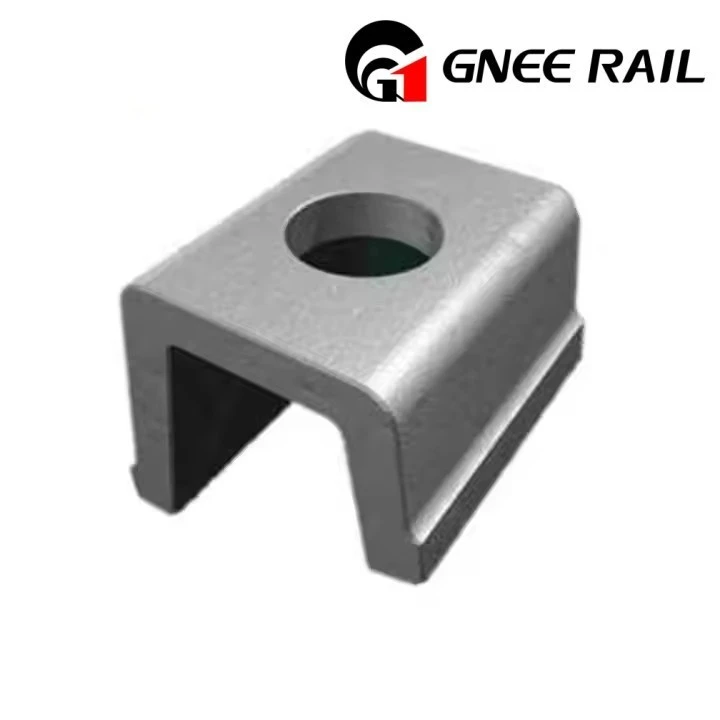

A Railway Clamp is an essential mechanical fastening device employed in railway infrastructure to firmly secure rails to sleepers or baseplates. Typically comprising a clamp body, bolt, nut, and washer, it is manufactured from high-strength alloy steel with corrosion-resistant coatings. This component plays a crucial role in maintaining track stability, absorbing dynamic forces, and ensuring operational safety under varying load conditions and environmental factors.
Technical Specifications:
| Parameter | Standard Cast Iron Shoulder | Elastic Polymer Shoulder | Heavy-Duty Forged Steel Shoulder |
|---|---|---|---|
| Primary Application | Conventional ballasted track with concrete sleepers | Slab track & areas requiring high electrical insulation | Heavy-haul corridors, sharp curves, high-impact zones |
| Core Material | Spheroidal Graphite Iron (SGI/DUCTILE Iron) | Glass-Fiber Reinforced Polyamide (PA-GF) | Forged Alloy Steel |
| Key Advantage | High strength-to-cost ratio, excellent durability | Vibration damping, electrical isolation, corrosion-free | Ultimate strength & wear resistance, minimal deformation |
| Typical Fastening System | Pandrol Fastclip, e-clip systems | Vossloh W-14, W-30 series | SKL-type systems, specific heavy-duty applications |
| Maintenance Consideration | Check for cracks/fractures; corrosion at sleeper interface | Monitor for UV degradation, creep, or cracking | Inspect for plastic deformation at clip contact points |
Mechanical & Installation Perspective
Force Distribution Mechanism: Features specialized geometry that evenly distributes vertical, lateral, and longitudinal forces across the rail-foot interface
Vibration Damping System: Incorporates elastic elements or friction-enhancing surfaces to reduce resonance and prevent harmonic oscillations
Thermal Expansion Accommodation: Designed with precise tolerances to accommodate rail expansion/contraction across temperature extremes (-40°C to +60°C)
Installation, Maintenance & System Integration Perspective
- Micro-alloyed Steel Composition: Utilizes vanadium/nickel-enhanced steel (e.g., 38Cr2) providing optimal strength-to-weight ratio
- Multi-stage Heat Treatment: Sequential processing including normalizing, quenching, and tempering achieving HRC 28-35 hardness range
- Advanced Surface Engineering: Application of zinc-aluminum hybrid coating (ZM310) offering 5,000+ hours salt spray resistance
