↵Rail Clamp Fastening System

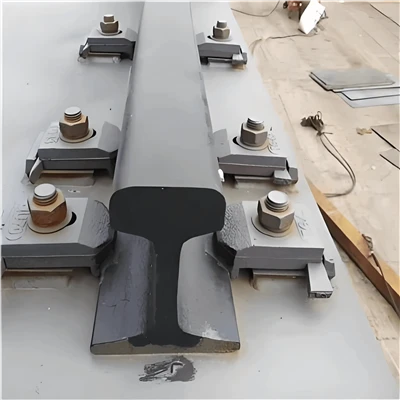

Rail clamp: also known as welded rail clamp, welded rail fixtures, steel beam rail clamp, welded rail plate, no matter what the name, there is only one function, that is pressing and fixing the rail, usually welded on I beams, sometimes on steel plates
Technical Specifications:
| Feature | Category | Specific Detail / Characteristic | |
|---|---|---|---|
| Primary Function | Structural | Reinforce Rail Joints / Fishplate Connection | |
| Typical Application Context | Application | Insulated Joints, Bridge Transitions, Emergency Repairs | |
| Installation Critical Factor | Installation | Precise Bolt Torque & Surface Preparation | |
| Key Mechanical Action | Mechanical | Applies Lateral Compressive Force to Rail-Fishplate Interface | |
| Design Philosophy | Mechanical | Absolute Restraint over Elasticity (Rigid Fixation) | |
Mechanical & Installation Perspective
Joint Reinforcement Function: Serves as an external reinforcement mechanism that supplements the fishplate and bolts, distributing dynamic bending and shear forces over a larger area of the rail web and foot.
Compressive Force Application: Generates a high static clamping force through torque-controlled bolting, pressing the fishplate firmly against the rail web to restrict longitudinal slippage and vertical uplift at the joint.
Fatigue Stress Reduction: Mitigates the notch effect and stress concentration inherent at rail joints by reducing micro-movements, thereby extending the fatigue life of both the rail ends and fishplate bolts.
Installation, Maintenance & System Integration Perspective
- Torque-Critical Installation: Requires calibrated torque wrenches for precise bolt tensioning. Under- or over-torquing can compromise effectiveness or damage components.
- Surface Preparation Dependent: Demands clean, burr-free contact surfaces on both the rail web and fishplate. Poor preparation leads to uneven load distribution and reduced performance.
- Periodic Re-torquing Necessity: May require scheduled re-torquing after initial settlement under traffic load, especially in joints subjected to high impact or thermal cycling.
