Description
Technical Parameters

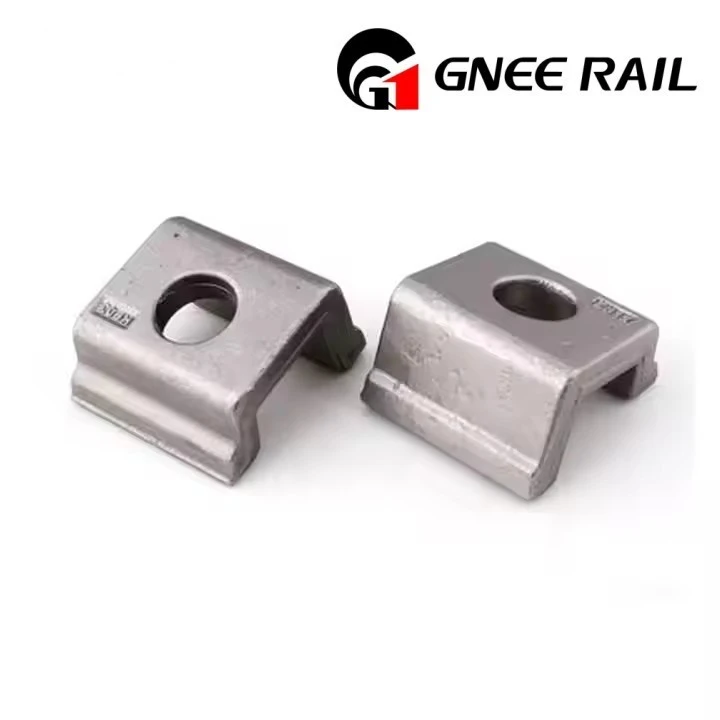

Railway Rail Clips: Core Functions & Specifications
| Function Category | Technical Implementation | Performance Metrics | Application Examples |
|---|---|---|---|
| 1. Rail Fastening | |||
| ・Vertical Fixation | Elastic clamping on rail base | HSR: ≥12kN, Conventional: ≥8kN (TB/T 3395) | Type III clips maintaining zero loosening at 350km/h |
| ・Lateral Guidance | Clip arms gripping rail web | Lateral stiffness: 15-25kN/mm (EN 13146) | Curve negotiation (R<400m) |
| ・Longitudinal Anti-creep | Friction resistance against thermal movement | ≥7kN/set (UIC 865) | Bridge expansion joints |
| 2. Dynamic Damping | |||
| ・High-frequency Absorption | Hysteresis of spring steel (E=206GPa) | Insertion loss ≥5dB (200-2000Hz) | Metro tunnel noise reduction |
| ・Impact Dispersion | Elastic deformation transferring wheel forces | 15-20% reduction in sleeper dynamic load | Heavy-haul track impact mitigation |
| ・Impedance Matching | Coordinated stiffness with baseplates (50-70kN/mm) | Optimized vibration transmission | Slab track systems |
| 3. Geometry Maintenance | |||
| ・Gauge Retention | Precision clamping force distribution (1:40 incline) | Gauge tolerance ±1mm (HSR) | Switch diamond area |
| ・Level Adjustment | Adjustable rail pads with clip system | Vertical deviation ≤2mm/10m | Track settlement zones |
| 4. Electrical Isolation | |||
| ・Track Circuit Integrity | Nylon insulation (ρ≥10¹²Ω) | Insulation resistance ≥10⁸Ω (IEC 62371) | Electrified section signaling |
| 5. Environmental Adaptation | |||
| ・Corrosion Resistance | Zn/Dacromet coating (≥80μm for coastal) | Salt spray test ≥1000h (ISO 9227) | Sea-crossing bridges |
| ・Low-Temperature Performance | -60℃ alloy steel (Charpy impact ≥27J) | 200% fatigue life vs standard | Polar region railways |
Functional Synergy Analysis
