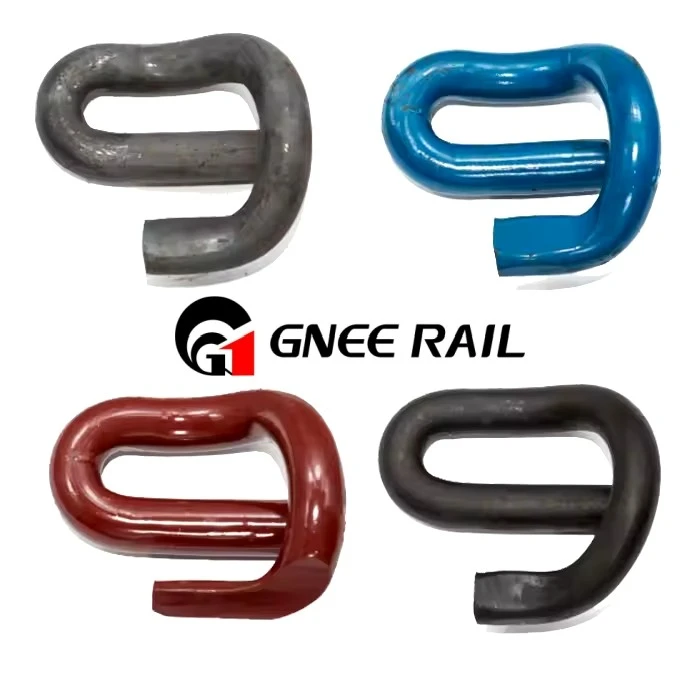

E2055-2 Rail Clips

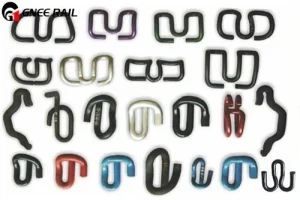

Rail clips play a vital role in securing rails to the baseplate or tie, ensuring track alignment and safety during train operations. Also known as railway clips, elastic rail clips, track clips, and railroad sleeper clips, they are necessary for maintaining track gauge. The E2055-2 rail clips fall under Pandrol's E-type series. As a professional and trusted supplier, GNEE Rail specializes in manufacturing a wide range of rail clips, including models like E1809, E2052, E1804, E2055, E2005, E2006, SKL1, SKL12, SKL3, SKL14, PR309, PR401, PR415, PR85, PR601, Fast 16, Fast 1501, Fast1502, Fast 1508, and Fast 1600. All products meet global standards and can be customized to your specific needs. Please contact us for more details.
E2055-2 Rail Clips specification
| Item No. | Material | Clip Lenth | Clip Hight | Clip Diameter | Hardness | Pressure | Fatigue test |
| e2007 | 60Si2MnA | 105±5 | 38max | ø20±0.3 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| D1 | 60Si2MnA | 100±3 | 58±3.0 | ø18±0.25 | 44-48 | ≥8.25KN | 5,000,000 times without broken |
| E18 | 60Si2MnA | 100±3 | 58±3.0 | ø18±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| E18 Anti-theft | 60Si2MnA | 100±3 | 57±3.0 | ø18±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| E19 | 60Si2MnA | 100±3 | 56.5±3.0 | ø20±0.25 | 44-48 | ≥8.25KN | 5,000,000 times without broken |
| E20 | 60Si2MnA | 100±3 | 56.5±3.0 | ø20±0.25 | 44-48 | ≥8.25KN | 5,000,000 times without broken |
| e1609 | 60Si2MnA | 93±3 | 30max | ø16±0.25 | 44-48 | ≥6.0KN | 5,000,000 times without broken |
| e1809 | 60Si2MnA | 104±3 | 36max | ø18±0.25 | 44-48 | ≥7.5KN | 3,000,000 times without broken |
| e1817 | 60Si2MnA | 104±3 | 37.5±3.0 | ø18±0.25 | 44-48 | ≥7.5KN | 5,000,000 times without broken |
| e2009 | 60Si2MnA | 106±3 | ≤37.5 | ø20±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| e2039 | 60Si2MnA | 104±3 | 37max | ø20±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| e2055-1 | 60Si2MnA | 106±3 | 39±2.0 | ø20±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| e2055-2 | 60Si2MnA | 106±3 | 56.6±3.0 | ø20±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| e2055 | 60Si2MnA | 106±3 | 56.6±3.0 | ø20±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken |
| e2056 | 60Si2MnA | 106±3 | 56.6±2.5 | ø20±0.25 | 44-48 | ≥2.7KN | 5,000,000 times without broken |
| e2063 | 60Si2MnA | 110.5 | 53.4 | ø20±0.25 | 44-48 | ≥2.75KN | 5,000,000 times without broken |
| III | 60Si2MnA | 110±2.8 | 63±2.8 | ø20±0.25 | 44-48 | 12.4-13KN | 5,000,000 times without broken |
| PR85 | 60Si2MnA | 88±3 | ø13±0.25 | 44-48 | ≥9.5KN | 5,000,000 times without broken | |
| PR309 | 60Si2MnA | 110 | ø19±0.25 | 44-48 | 700-900KN | 5,000,000 times without broken | |
| PR401 | 60Si2MnA | 127±3 | 38.1±3.0 | ø20±0.3 | 44-48 | 5.0-7.0KN | 5,000,000 times without broken |
| SKL-14 | 60Si2MnA | 155±2.0 | ø14±0.2 | 42-47 | ≥8.5KN | 5,000,000 times without broken | |
| SKL-3 | 60Si2CrA | 120±2.0 | ø13±0.3 | 42-47 | 8-12KN | 5,000,000 times without broken | |
| SKL-1 | 60Si3CrA | 133±2.0 | ø13±0.3 | 42-47 | 8-12KN | 5,000,000 times without broken |
E2055-2 Rail Clip material specification
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 | |||||
| Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | |||
| PR rail clip | PR309 | 44-48HRC | |||
| PR401 | |||||
| PR601 | |||||
| PR85 | |||||
| We can also manufacture customized rail clips following your drawings or samples! | |||||
