Description

Technical Parameters

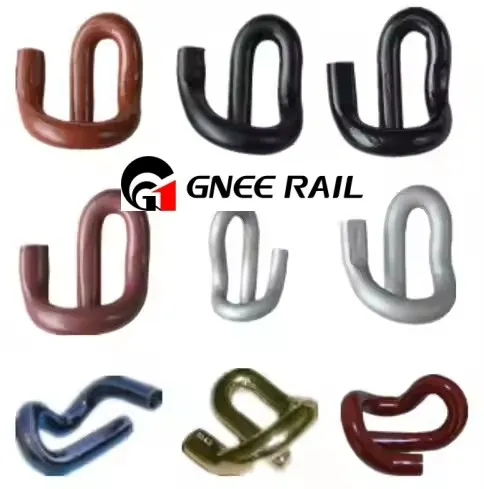

E2055 Railway Clip

Rail clips, or railway clips, elastic rail clips, track clips, and railroad sleeper clips, are essential for securing the rail to the tie or baseplate, ensuring the track's stability and safety. E2055 rail clips are Pandrol's rail clip and belong to the E-type series rail clips. We GNEE rail specialize in manufacturing various types of rail clips, including E1809, E2052, E1804, E2055, E2005, E2006, SKL1, SKL12, SKL3, SKL14, PR309, PR401, PR415, PR85, PR601, Fast 16, Fast 1501, Fast1502, Fast 1508, and Fast 1600. All of our products meet international standards and are customizable. Please feel free to contact us for more details.

E2055 Railway Clip specification

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break

E2055 Railway Clip material specification

Series	Type	Hardness	Material	Fatigue life	Surface
E rail clip	E1,E2,E3	44-48HRC	60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03	For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking.	Plain (oiled), Oxide black, color painting or upon customer requirement.
	E1609
	E1809
	E1817
	E2001
	E2006
	E2009
	E2055
	E2056
Vossloh clip& Forged rail clip	SKL1	42-47HRC
PR rail clip	PR309	44-48HRC
	PR401
	PR601
	PR85
We can also manufacture customized rail clips following your drawings or samples!
