Fastening System Fast Rail Clips

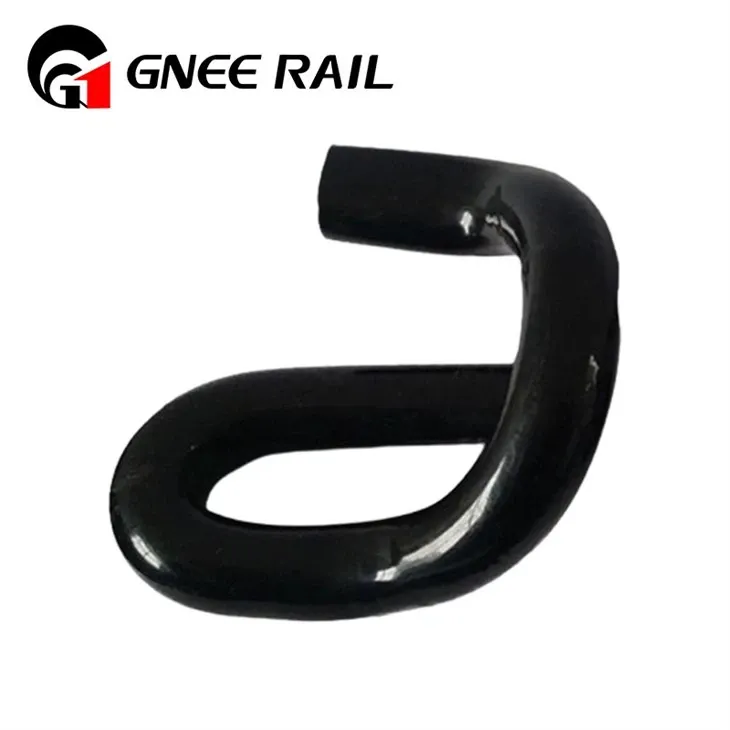

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Model Specifications & Core Mechanical Properties

Model No.	Diameter (mm)	Material Grade	Hardness (HRC)	Toe Load Range (kgf)	Maximum Spring Force (kN)	Fatigue Life (Cycles)	Length (mm)	Weight (kg/pc)	Compliance Standards
E1609	16 ± 0.25	60Si2MnA	44-48	500-700	≥9.5	≥5,000,000	100 ± 3	0.43	EN 13481, DIN 17221, GB/T 1222
E1809	20 ± 0.25	60Si2MnA	44-48	750-900	≥12.0	≥5,000,000	110 ± 3	0.61	EN 13481, BS 970, AREMA
E2007	20 ± 0.25	60Si2CrA	44-48	1100-1400	≥14.0	≥5,000,000	115 ± 3	0.80	EN 13481, GB/T 1222
E2055	20 ± 0.25	60Si2MnA	44-48	1100-1400	≥16.0	≥5,000,000	120 ± 3	0.80	EN 13481, DIN 17221
E-Clip SRS	18 ± 0.25	55Si2Mn	42-47	800-1000	≥10.0	≥3,000,000	105 ± 3	0.65	ASTM, EN 13481

System Configuration & Application Advantages

Model No.	Fastening System Components	Applicable Sleeper Types	Installation Features	Key Performance Advantages	Target Application Scenarios	Regional Adoption	Noise Reduction Effect	Maintenance Cycle
E1609	2 E-clips + 2 shoulders (QT500-7) + 1 HDPE rail pad + 2 PA66 insulators	Concrete, Wide sleepers	Boltless structure; dedicated tool installation; 3-step process	Low maintenance; high elasticity; cost-effective	Urban light rail, short-haul freight lines	Europe, Indonesia, South Africa	Moderate (reduces 15-20dB)	8-10 years
E1809	2 E-clips + 2 shoulders (QT450-10) + 1 rubber rail pad + 2 PA66 insulators	Concrete, Integral road beds	Simplified installation; no pre-assembly required	Permanent elasticity; creep/torsion resistance	Mainline railways, metro systems	Global (50+ countries)	Good (reduces 20-25dB)	10-12 years
E2007	2 E-clips + 2 shoulders (QT500-7) + 1 EVA rail pad + 2 PA66 insulators	Concrete, Ballasted tracks	Lateral adjustability; fits UIC 54/60 rails	High clamping force; withstands heavy axle loads	Heavy-haul freight lines, continuously welded tracks	Asia, Africa, Europe	Excellent (reduces 25-30dB)	12-15 years
E2055	2 E-clips + 2 shoulders (QT450-10) + 1 rubber rail pad + 2 PA66 insulators	Concrete, Steel sleepers	Self-tensioning design; no torque adjustment needed	Shock absorption; stray current protection	High-speed railways (≤350 km/h), large-scale rail projects	China, Southeast Asia	Good (reduces 20-25dB)	10-12 years
E-Clip SRS	2 E-clips + Cast base plate + Resilient pad	Wood, Composite ties, Slab track	Low-profile design; 2/4-hole versions available	Versatile compatibility; economical; noise mitigation	Transit systems, freight railways, urban rail transit	North America, Europe, Australia	Excellent (reduces 30-35dB)	15-20 years
