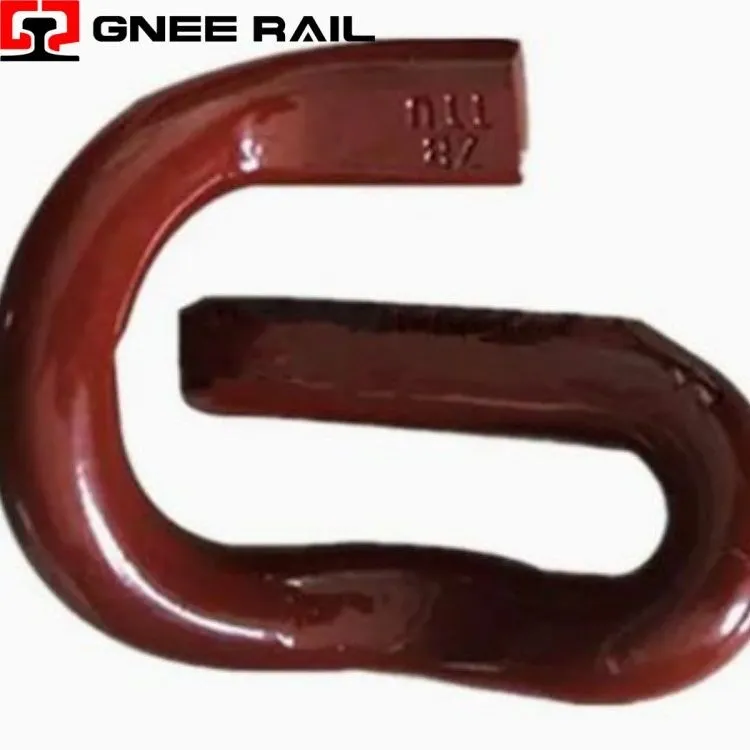

Fixing Crane Rail Clip E Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Rail E Clip Fastening System

The Railway E-Clip is a precision-formed, axial retention device fabricated from high-carbon spring steel strip, defined by its distinctive triple-lobe architecture that resembles the letter "E". This fastener operates by seating into a pre-cut annular recess on a railway axle or shaft, where its three internal prongs exert a controlled radial expansive force against the groove floor.

Technical Specifications:

Parameter	Railway E-Clip	Threaded Lock Nut	Tapered Sleeve Assembly	Welded Retaining Ring
Axial Load Capacity	Moderate (shear-limited)	High (thread-dependent)	Very High (friction-dependent)	High (weld-dependent)
Installation Tooling	Hand pliers (simple)	Torque wrench (calibrated)	Hydraulic press (heavy)	Welding equipment (specialized)
Removal Difficulty	Low (reversible)	Moderate (reversible)	High (often destructive)	Impossible (permanent)
Groove Requirement	Shallow rectangular	Deep thread form	Tapered profile	Square or V-groove
Temperature Limit	Material-dependent (~400°C)	Lubricant-dependent	Material-dependent	Weld-dependent
Inspection Method	Visual gap check	Torque audit	Marking displacement	Dye penetrant/UT

Installation & Maintenance Perspective:

Progressive Die Stamping Accuracy: The clips are produced using multi-stage progressive tooling that blanks, forms, and coins the profile in a single continuous operation.
Stress-Relieved Forming: After stamping, components undergo a sub-critical annealing process that relieves internal stresses induced during cold forming.
Surface Finish Specification: The contact faces of the prongs are specified to a maximum surface roughness of Ra 1.6 micrometers.

Maintenance & Operational Perspective

Kanban-Ready Packaging: Clips are typically supplied in quantities matching assembly consumption rates, packaged in compartmentalized trays or reel-fed formats that integrate with automated kitting systems, reducing handling time on the assembly line.
Third-Party Type Approval: Reputable suppliers maintain independent type approval from railway certification bodies, confirming that the clip design has passed rigorous testing for fatigue life, load capacity, and environmental resistance according to international standards.
Global Sourcing Flexibility: Manufacturers often maintain regional distribution hubs to support just-in-time delivery requirements, with safety stock levels calculated to buffer against supply chain disruptions while minimizing inventory carrying costs for the buyer.
