Rail E CLIP Fastening System

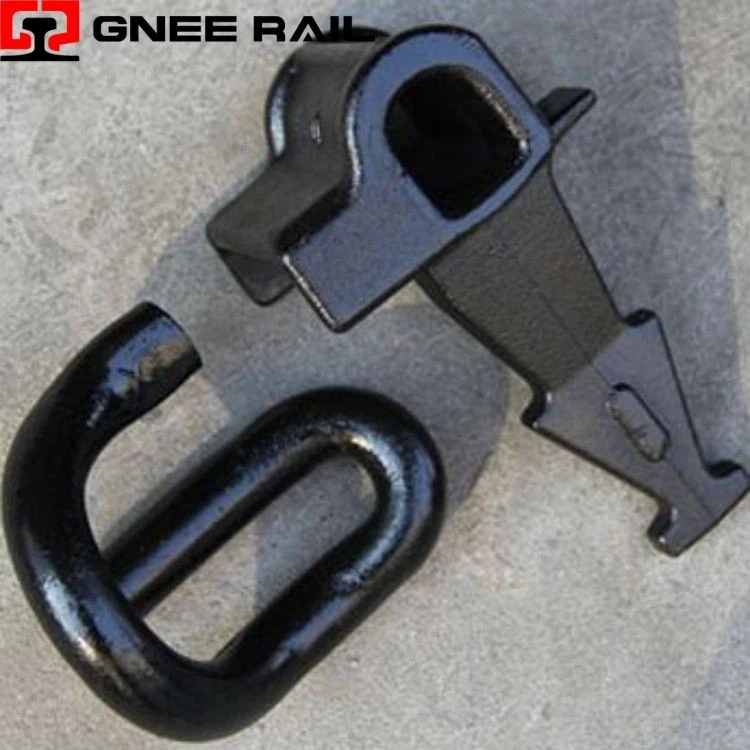

A Railway E-Clip is a precision-engineered spring steel fastening component that functions as the critical interface between the rail and the sleeper in modern track systems. Its distinctive "E" geometry creates a sophisticated spring mechanism that delivers a precise, calibrated clamping force to secure the rail foot while allowing controlled vertical deflection. This component forms the final link in the load transfer chain, converting dynamic train forces into manageable stresses that dissipate through the track structure, thereby preserving geometric alignment and extending the service life of both rails and sleepers under diverse operational conditions.
Technical Specifications:
| Parameter | Standard Duty E-Clip | Heavy Haul E-Clip | Application Context |
|---|---|---|---|
| Material Grade | 55Si7 Spring Steel | 60Si2CrVA Alloy Steel | Higher alloy content for extreme loads |
| Tensile Strength | 1,200 - 1,400 MPa | 1,500 - 1,700 MPa | Greater resistance to permanent deformation |
| Hardness (HRC) | 40 - 44 | 46 - 50 | Enhanced wear resistance at contact points |
| Coating Thickness | 8 - 12 microns | 15 - 20 microns | Extended protection in coastal or tunnel environments |
| Proof Load Test | 15 kN minimum | 20 kN minimum | Verification of clamping capacity before shipment |
Installation & Maintenance Perspective:
- Spring Steel Composition: Manufactured from 60Si2Mn or 38Si7 high-grade spring steel for optimal resilience.
- Heat Treatment Precision: Undergoes controlled quenching and tempering to achieve specific hardness without brittleness.
- Fatigue Resistance: Engineered to withstand millions of load cycles without crack initiation or propagation.
Maintenance & Operational Perspective
- Gauge Retention: Prevents rail widening by maintaining consistent lateral restraint against spreading forces.
- Anti-Creep Performance: Resists longitudinal rail movement (creep) caused by acceleration and braking forces.
- Skew Load Handling: Accommodates asymmetrical wheel loads on curves without losing clamping effectiveness.
