Description
Technical Parameters

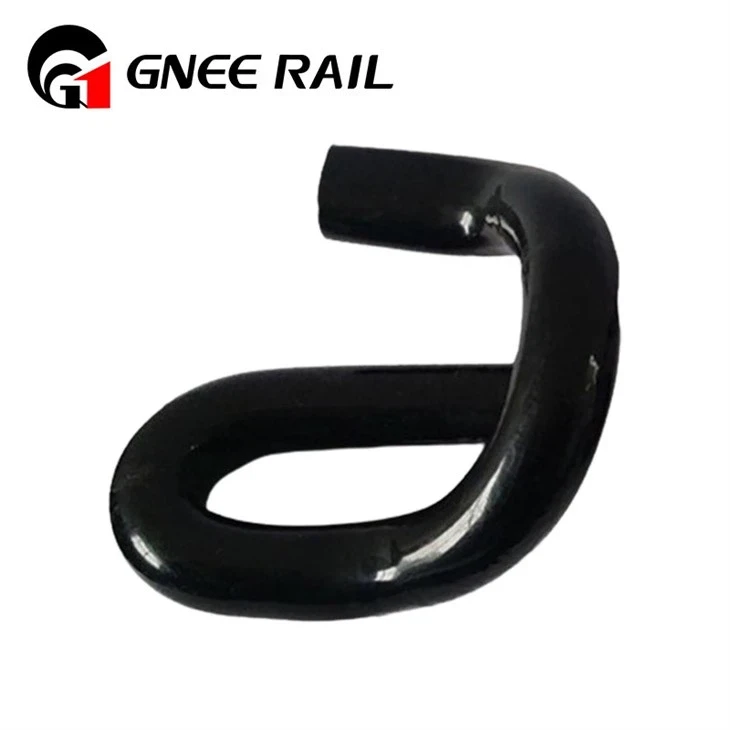

Railway E Clips Product Specifications
| Model | Wire Diameter | Material | Hardness | Toe Load | Fatigue Life | Surface Treatment | Standard |
|---|---|---|---|---|---|---|---|
| E1609 | φ16mm | 60Si2MnA | 44 - 48 HRC | 500 - 700 kgf | 3 million cycles without breaking | Oiled, Oxygen Black, Zinc Plated, etc. | DIN 17221, BS 970, GB/T 1222 |
| E1809 | φ18mm | 60Si2MnA | 44 - 48 HRC | 750 - 900 kgf | 3 million cycles without breaking | Oiled, Oxygen Black, Zinc Plated, etc. | DIN 17221, BS 970, GB/T 1222 |
| E2007 | φ20mm | 60Si2CrA | 44 - 48 HRC | 1100 - 1400 kgf | 5 million cycles without breaking | Oiled, Oxygen Black, Zinc Plated, etc. | DIN 17221, BS 970, GB/T 1222 |
| E2009 | φ20mm | 60Si2CrA | 44 - 48 HRC | 1100 - 1400 kgf | 5 million cycles without breaking | Oiled, Oxygen Black, Zinc Plated, etc. | DIN 17221, BS 970, GB/T 1222 |
E - Clip Fastening System Components
| Component | Quantity | Material | Function |
|---|---|---|---|
| E - Clip | 2 pieces(2 个) | Spring Steel | Provide elastic clamping force to fasten the rail to the baseplate, ensuring the stability of the rail connection and preventing rail movement. |
| Rail Shoulder | 2 pieces | QT500 - 7, QT450 - 10, etc. | Withstand the impact of loads and vibrations transmitted to the sleeper, and ensure that the sleeper is not damaged or loosened. |
| Rail Pad | 1 piece | HDPE, Rubber, EVA, etc. | Insulate the rail from the baseplate, reduce vibration and noise, and protect the rail and baseplate surfaces. |
| Insulator | 2 pieces | Reinforced Nylon 66 | Prevent electrical conduction between the rail and other components, ensuring the safety of the railway electrical system. |
