Rail fast clip Fastening System

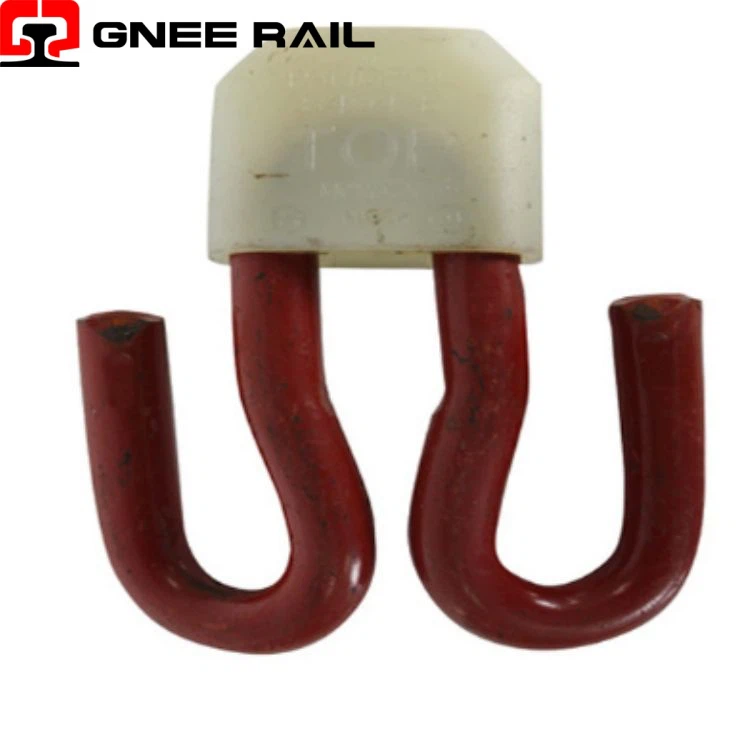

Railway Fast Clips are pre-assembled, tension-spring fasteners engineered for rapid mechanized installation. Featuring a distinctive M or W-shaped geometry, these clips insert perpendicular to the rail and lock into position with a simple push action . The captive system delivers consistent clamping force ranging from 10-20 kN depending on model, ensuring reliable track stability while enabling four times faster installation compared to conventional clipping methods .
Technical Specifications:
| Model | Clamping Force | Spring Travel | Primary Application |
|---|---|---|---|
| FC1306 | 3 kN | ≥7 mm | Light rail/metro |
| FC1504 | 10±1.0 kN | ≥10 mm | General mainline |
| FC1500 | 16 kN | - | High speed |
| FC1600 | 20 kN | - | Heavy haul |
| Bar Diameter | 13-20mm options | 60Si2Mn/38Si7 steel | Custom toe loads |
| Installation Rate | 6-20 sleepers/min | Single operator | 4x faster than conventional |
Installation & Maintenance Perspective:
- Pre-assembled on sleepers before site delivery
- Single push action locks clip into working position
- Mechanized machines clip 6+ sleepers per minute
- One operator replaces six-person manual crews
- Remote-controlled clipping up to 20 sleepers/minute
Maintenance & Operational Perspective
- Components tethered together preventing loss during maintenance
- Embedded shoulder cast directly into concrete sleeper
- Plastic seal plate protects mold and prevents slurry leakage
- Gauge adjustment via interchangeable insulating blocks (-8mm to +4mm)
- Shoulders resistant to accidental damage during handling
