Description
Technical Parameters

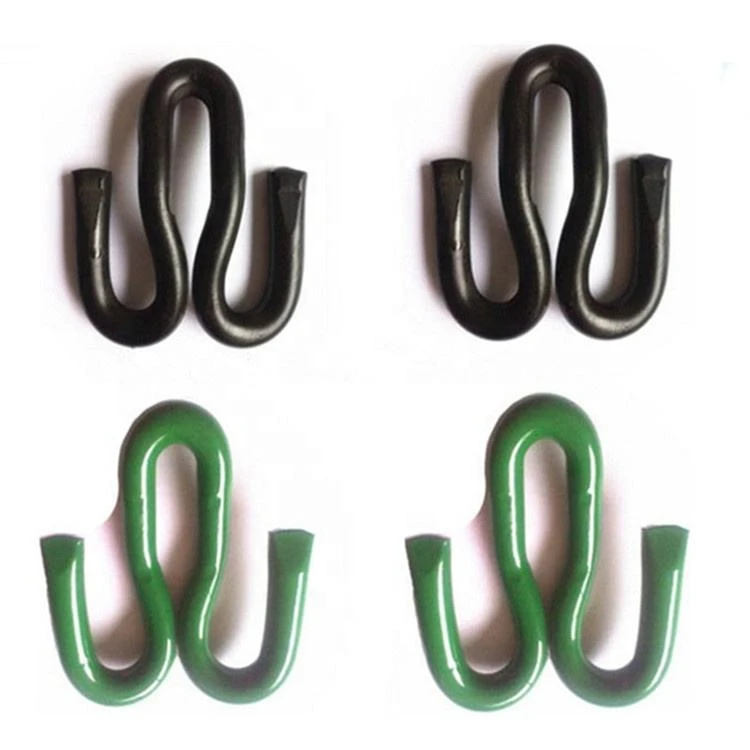

Railway Fast Clips - Model & Technical Specifications
| Model | Wire Diameter | Overall Length | Working Height | Core Material | Surface Treatment | Weight |
|---|---|---|---|---|---|---|
| FC-14 | 14mm | 102±2mm | 33±1mm | 60Si2MnA | Hot-dip galvanizing (80μm) | 0.34kg/pc |
| FC-16 | 16mm | 115±2mm | 37±1mm | 55SiMnVB | Dacromet coating (12μm) | 0.48kg/pc |
| FC-18 | 18mm | 128±2mm | 41±1mm | 60Si2CrNiA | Zn-Al alloy plating (60μm) | 0.63kg/pc |
| FC-20 | 20mm | 140±2mm | 45±1mm | 65Mn | Epoxy powder coating (50μm) | 0.79kg/pc |
| FC-12-Ins | 12mm | 90±2mm | 29±1mm | 38Si7 + PA66 insulation layer | Electrical insulation coating (45μm) | 0.26kg/pc |
Railway Fast Clips - Application Compatibility & Maintenance Requirements
| Fast Clip Model | Compatible Rail Type | Matching Baseplate | Installation Torque | Key Maintenance Checks | Compliance Standard |
|---|---|---|---|---|---|
| FC-14 | 30kg/m light rail | Lightweight LPB-14 | 40–50 N·m | 1. Clamping force (≥7 kN); 2. Surface rust | DIN 50113 |
| FC-16 | 43kg/m standard rail | Standard SPB-16 | 50–60 N·m | 1. Lateral displacement (≤1.2 mm); 2. Coating integrity | BS 499-1 |
| FC-18 | 50kg/m heavy rail | Heavy-duty HPB-18 | 60–70 N·m | 1. Fatigue crack detection; 2. Bolt tightness | AREMA 30 |
| FC-20 | 60kg/m heavy-haul rail | Ultra-heavy UHPB-20 | 70–80 N·m | 1. Wear thickness; 2. Dust/debris cleaning | ISO 898-1 |
| FC-12-Ins | 22kg/m tram rail | Insulated IPB-12 | 35–45 N·m | 1. Insulation resistance (≥10⁸ Ω); 2. Insulation layer | TB/T 3395.3 |
