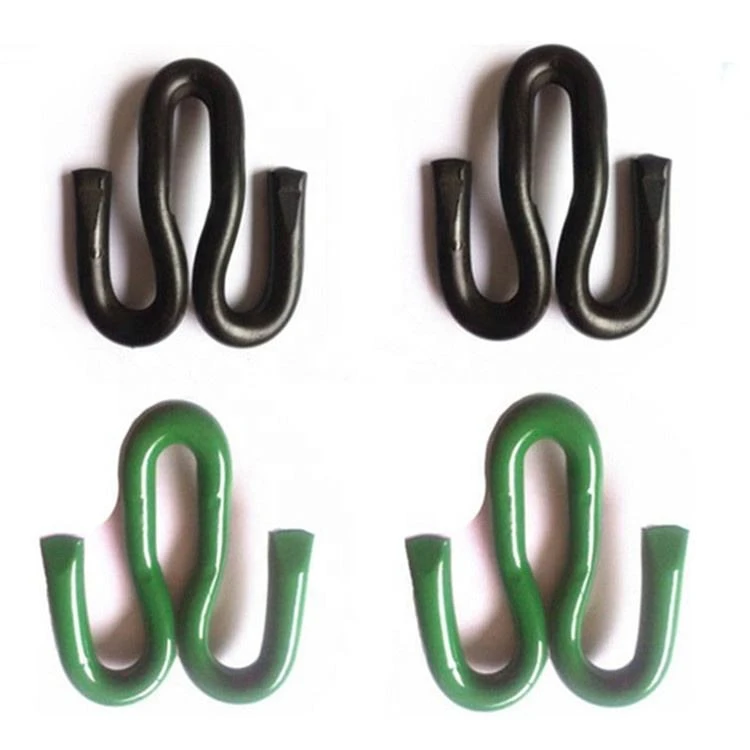

Essential Railway Fast Clip

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail fast Clip Fastening System

Railway SKL Clips, also known as Sprung Klemme-Links-Rechts (Spring Clamp Left-Right), are a highly engineered and widely adopted rail fastening system. Designed for direct fixing of rails to concrete sleepers or baseplates without additional components like anchor bolts, they provide consistent clamping force, excellent vibration damping, and robust resistance against rail creep. Their distinctive "V" or "W" shaped design allows for elastic deformation under load, ensuring secure and durable track stability across varied operating conditions.

Technical Specifications:

Model / Series	Primary Application Focus	Design Clamping Force (kN)	Fatigue Life (Million Cycles)	Key Governing Standards
Pandrol Fastclip FC	Mixed-traffic mainlines, heavy haul	11.5 - 13.5	≥5	AREMA 30-04-96, EN 13481-2
Vossloh W 30	High-speed ballasted track	10.5 - 12.5	≥10	TSI INF, EN 13481-3
NERA Fast Clamp	Urban transit, light rail	9.0 - 11.0	≥7	UITP Standards, EN 13479
HXG Heavy-Duty	Mining, 40-ton axle loads	14.0 - 16.0	≥3	ASTM A125, MSHA regulations
KLP Coastal Grade	Port facilities, coastal lines	11.0 - 13.0	≥5	ISO 12944 C5-M, Special corrosion spec

Application Scenarios

High-Volume Mainline Renewals: Ideal for track relaying projects where installation speed is critical to minimize line possession time, often deployed with fully mechanized clip applicator machines.

Modular Ballastless Track Systems: Widely used in prefabricated slab track installations (like LVT or Shinkansen designs) where clips are pre-attached in factory conditions for rapid onsite deployment.

Heavy-Axle-Load (HAL) Freight Corridors: Specifically engineered variants are employed to resist the extreme vertical and dynamic forces generated by unit trains exceeding 35-ton axle loads.

Maintenance & Operational Perspective

Installation Efficiency: Can be installed 3-5 times faster than traditional bolted fastenings using specialized hydraulic or electric tools, significantly reducing initial labor costs.
Condition-Based Monitoring: Maintenance scheduling follows MGT (Million Gross Tonnes) models with typical inspection intervals at every 200-300 MGT for visual and functional checks.
Rapid Replacement Capability: Individual damaged clips can be replaced in under 2 minutes using portable extraction/insertion tools without disturbing adjacent fasteners or rail alignment.
