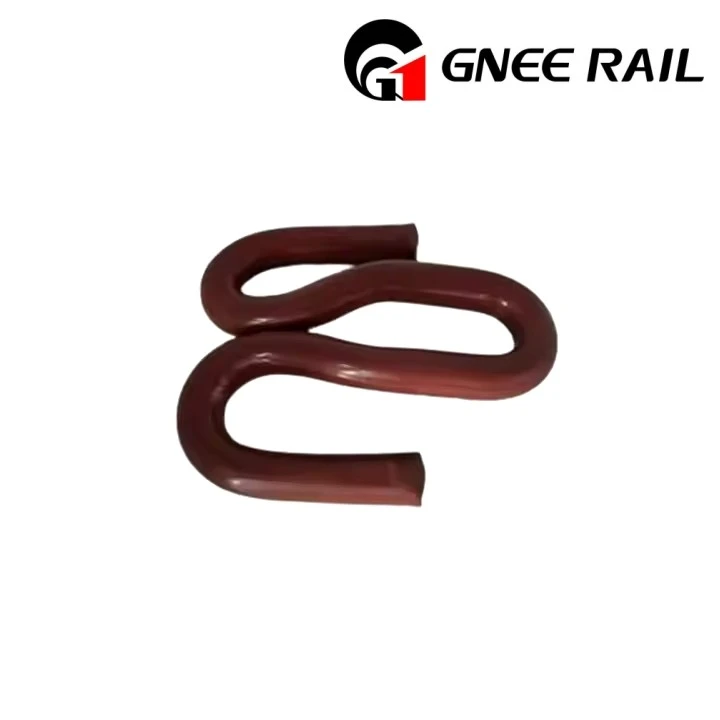

Fast Rail Clip 1600
Fast Rail Clip 1600 (also known as railway clip, elastic rail clip, rail track clip, railroad rail clip, rail clip, rail E clip, or railway sleeper clip) is a high-performance, boltless fastening system designed for efficient and reliable rail installation. It is ideal for fast and cost-effective track construction, reducing maintenance needs and enhancing the overall durability of the rail system. GNEE Rail offers expertise in the production of railway elastic clips, with custom manufacturing services available based on your drawings or samples. Our clips are made from high-quality spring steel, including materials like 60Si2MnA, 60Si2Cr, and 38Si7. We emphasize quality in every step of the process. Following ISO 9001:2008 standards, we employ professional testing methods to guarantee our clips meet the highest quality standards. Contact us with your requirements.
Fast Rail Clip 1600 mechnical property
Type: Fastclip FC 1600
Nominal Toe Load:1250 k gf
Clamping Force:2012 >20 kN
Creep Resistance:2012 >9 kN
Electrical Resistance:2012 > 5 kΩ
Fast Rail Clip 1600 technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test |
| SKL1 | 60Si2Mn | ø13 | 133±2.3 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | |
| SKL3 | 60Si2Mn | ø13 | 120±2 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | |
| SKL12 | 60Si2Mn | ø13 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| SKL14 | 60Si2Mn | ø13 | 155±2 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | |
| Fast Clip-1508 | 60Si2Mn | ø15 | 0.58 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| Fast clip-1501 | 60Si2Mn | ø15 | 0.58 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| Fast Clip-16 | 60Si2Mn | ø16 | 0.6 | 44-48 | ≥9.5KN | 5000000 times without break |
Fast Rail Clip 1600 workshop
Fast Rail Clip 1600 quality control
