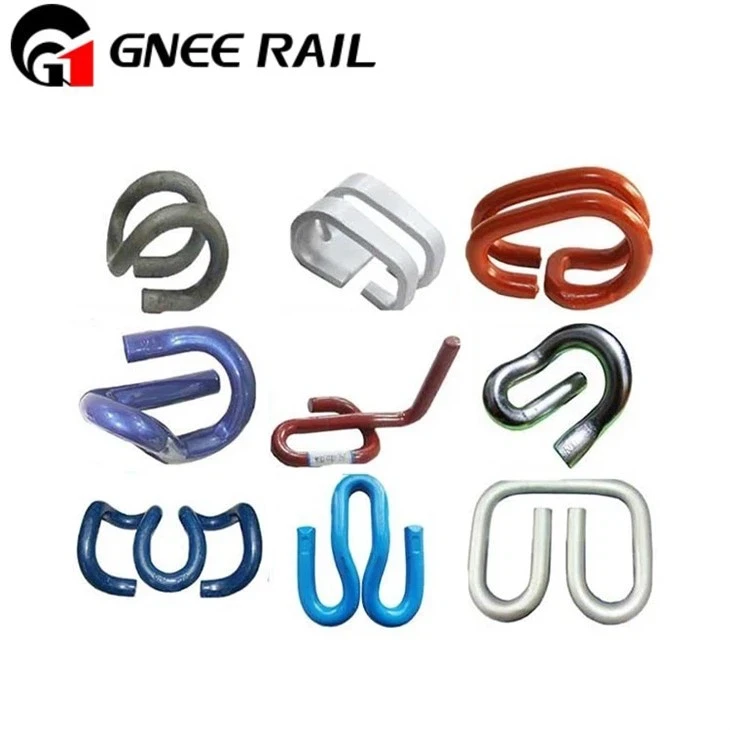

Fast Rail Clip 1501
The Fast Rail Clip 1501 is a reliable, high-elasticity, boltless fastening system that ensures quick track assembly while reducing maintenance costs. It can be customized to address both technical specifications and cost considerations for various customer needs. We GNEE rail focus on producing diverse railway elastic clips and offer tailored solutions based on your drawings or samples. Our products are made from premium materials like spring steel 60Si2MnA, 60Si2Cr, and 38Si7. We take quality seriously. Our production is fully compliant with ISO 9001:2008 standards, and our clips undergo rigorous testing to meet your exact requirements. Contact us for more information.
Fast Rail Clip 1501 specification
Item No: Rail Fast 1501 Clip
Type: railway clip, elastic rail clip, rail track clips, railroad rail clips, rail clip, rail e clip, railway sleeper clips
Brand: GNEE rail
Material: 60Si2Mn
Diameter: ø15
Weight: 0.58
HRC: 44-48
Pressure: ≥9.5KN
Fatigue Test: 5000000 times without break
Fast Rail Clip 1501 technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test |
| SKL1 | 60Si2Mn | ø13 | 133±2.3 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | |
| SKL3 | 60Si2Mn | ø13 | 120±2 | 0.48 | 44-48 | ≥9.5KN | 5000000 times without break | |
| SKL12 | 60Si2Mn | ø13 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| SKL14 | 60Si2Mn | ø13 | 155±2 | 0.53 | 44-48 | ≥9.5KN | 5000000 times without break | |
| Fast Clip-1508 | 60Si2Mn | ø15 | 0.58 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| Fast clip-1501 | 60Si2Mn | ø15 | 0.58 | 44-48 | ≥9.5KN | 5000000 times without break | ||
| Fast Clip-16 | 60Si2Mn | ø16 | 0.6 | 44-48 | ≥9.5KN | 5000000 times without break |
Fast Rail Clip 1501 workshop
Fast Rail Clip 1501 quality control
