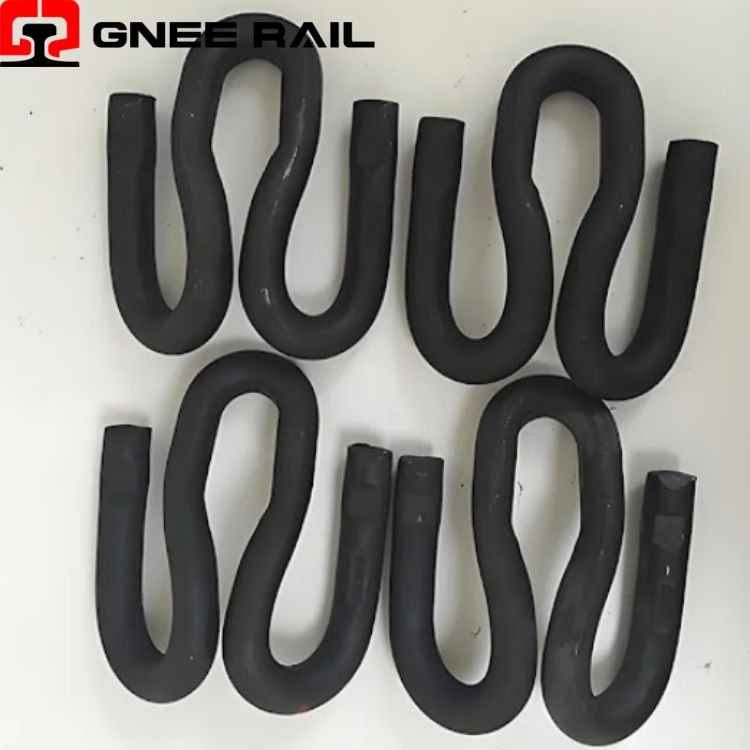

Fast Clips For Railway Fastener

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵

Rail fast CLIP Fastening System

The Railway Fast Clip is a single-component rail fastening system engineered for ultra-rapid mechanized installation, featuring factory-preloaded tension that activates upon final seating. Unlike conventional clips requiring separate tensioning operations, the Fast Clip integrates spring compression and locking into one continuous motion, enabling continuous track laying at speeds exceeding 1,200 meters per hour while maintaining precise toe load tolerance.

Technical Specifications:

Innovation	Function	Outcome
Preloaded spring cassette	Stores full clamping force before installation	Zero field adjustment
Self-seating geometry	Guides clip into locked position automatically	No operator judgment required
Integrated force indicator	Changes appearance at correct insertion depth	Instant visual verification
Tool-less removal feature	Accepts standard extraction tool from any angle	30-second replacement
Composite coating system	Multi-layer corrosion protection	50-year service life
Stackable packaging	Nesting design for compact transport	40% more clips per container

Installation & Maintenance Perspective:

Factory-set tension eliminates field adjustment variables and human error.
Single-stroke hydraulic installation completes fastening in under 3 seconds per clip.
Audible and tactile feedback confirms correct seating without measurement.
Compatible with continuous track-laying machines and gantry systems.
Zero warm-up or calibration time required for installation equipment.

Maintenance & Operational Perspective

Laser-marked traceability code links each clip to manufacturing batch and heat number.
Pre-shipment load testing certifies toe load accuracy within ±3% tolerance.
Color-coded variants indicate different clamping force classes at glance.
Integrated visual wear indicators show remaining service life percentage.
RFID tagging option enables digital asset management and predictive maintenance.
