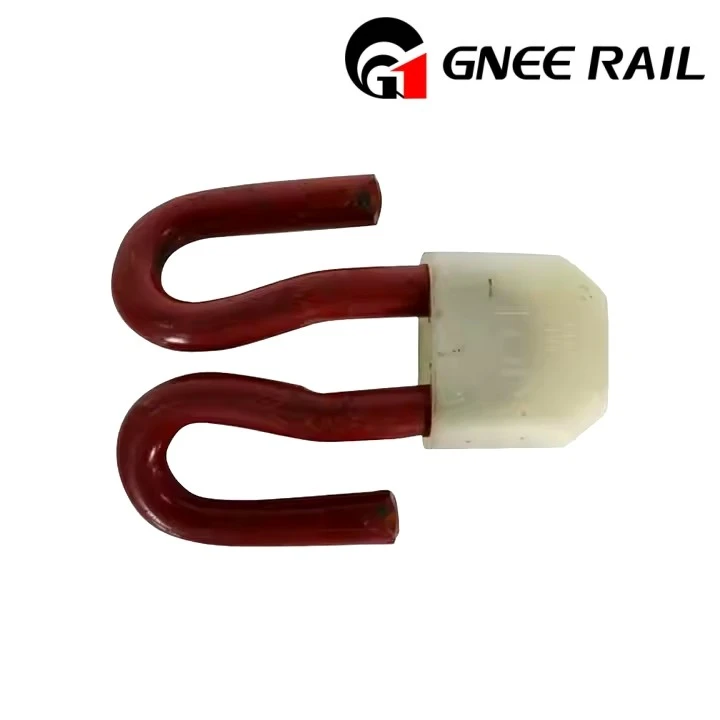

Fast Rail Clip 1508



The Fast Rail Clip 1508 is a high-performance, boltless fastening system designed for railway track construction. It offers excellent elasticity and stability, ensuring a secure and durable connection between the rail and sleeper. GNEE Rail is dedicated to producing various types of railway elastic clips, available for custom production based on your drawings or samples. We use premium materials such as spring steel 60Si2MnA, 60Si2Cr, and 38Si7. Quality control is at the forefront of our process. We adhere to ISO 9001:2008 standards and use advanced testing equipment to ensure our products meet all quality expectations. Contact us if you'd like to discuss your needs.

Fast Rail Clip 1508 specification



Item No: Fast Clip 1508

Type: railway clip, elastic rail clip, rail track clips, railroad rail clips, rail clip, rail e clip, railway sleeper clips

Brand: GNEE rail

Material: 60Si2Mn
Diameter: ø15
Weight: 0.58
HRC: 44-48
Pressure: ≥9.5KN
Fatigue Test: 5000000 times without break

Fast Rail Clip 1508 technical parameters



Item No Material Diameter Clip length Clip width Weight HRC Pressure Fatigue Test
SKL1 60Si2Mn ø13 133±2.3   0.48 44-48 ≥9.5KN 5000000 times without break
SKL3 60Si2Mn ø13 120±2   0.48 44-48 ≥9.5KN 5000000 times without break
SKL12 60Si2Mn ø13     0.53 44-48 ≥9.5KN 5000000 times without break
SKL14 60Si2Mn ø13 155±2   0.53 44-48 ≥9.5KN 5000000 times without break
Fast Clip-1508 60Si2Mn ø15     0.58 44-48 ≥9.5KN 5000000 times without break
Fast clip-1501 60Si2Mn ø15     0.58 44-48 ≥9.5KN 5000000 times without break
Fast Clip-16 60Si2Mn ø16     0.6 44-48 ≥9.5KN 5000000 times without break



Fast Rail Clip 1508 workshop



Railway Clip Workshop

Fast Rail Clip 1508 quality control
