Railway Clip Fast Clip Rail

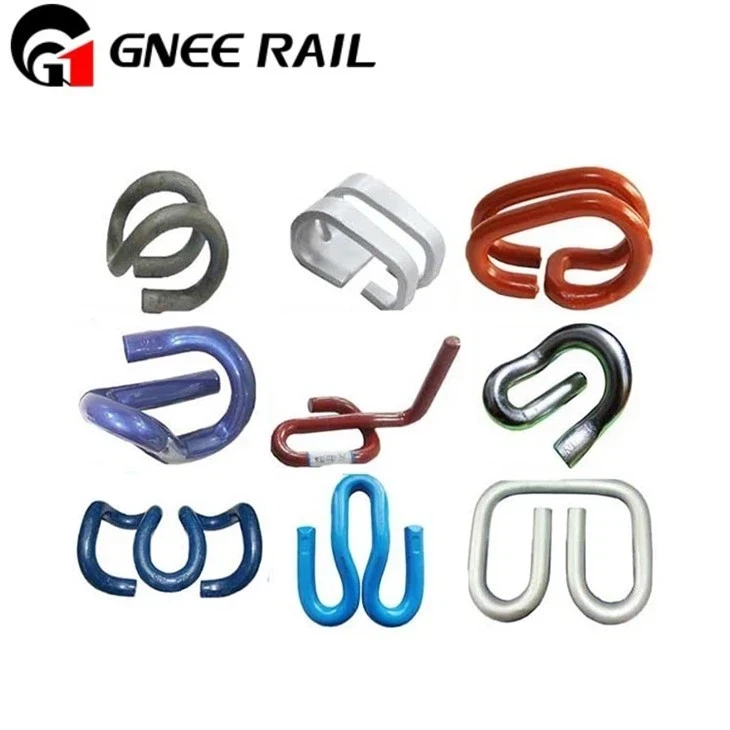

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Railway Fast Clips

Category	Parameter	Description / Specification
General Information	Product Name	Pandrol Fastclip (Most common), ORX Clip, SE-Clip, etc.
	Primary Function	To secure the rail to a baseplate or concrete sleeper without the need for bolts or nuts.
	Key Application	Mass Transit (Metros, LRT), High-Speed Rail, Mainlines, and Freight Yards.
Physical & Mechanical Properties	Material	High-Carbon Spring Steel (e.g., SUP9A, 52CrMoV4).
	Clamping Force	~8 - 12 kN (varies by type and rail size).
	Fatigue Life	≥ 5 million cycles (tested to relevant standards).
Design & Finish	Surface Treatment	Epoxy Coating (Various colors: red, blue, green) or Zinc Flake Coating.
	Key Feature	"Two-Piece" design for the assembly (Clip + Shoulder/Insert).
Performance Standards	International Standards	EN 13481 (European standard for fastening systems performance).
Installation & Tooling	Installation Method	Pushed-on using a hydraulic or electric tool (e.g., Pandrol "Tensioner-Pro" tool).
	Installation Speed	Extremely Fast. A team can install thousands per day.
	Removal	Removed with a special extraction tool.
Compatibility	Sleeper Type	Primarily used on concrete sleepers with pre-cast shoulders or plastic inserts.
	Also Used On	Steel sleepers and tunnel baseplates.

Railway Clip Fast Clip Rail

Advantages

1. Speed: Drastically reduces installation and maintenance time.
2. Reliability: No nuts to loosen, reducing maintenance.
3. Consistency: Pre-set clamping force ensures performance.
4. Reduced Parts Count: Eliminates bolts, nuts, and washers.
