Railway Clip Fast Rail

Name: China Customized Railway Clip Fast Rail Manufacturers Suppliers Factory - Free Sample - GNEE RAIL
Brand: GNEE
SKU: 280563109

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Comparison of Common Fast Clip Types

Feature	Fast Clip (e.g., Pandrol)	Nabla Clip	SKL Clip
Installation Method	Pressed ("nipped") onto a shoulder or into a housing.	Hammered or pressed into a housing.	Tensioned and locked with a bolt/nut.
Primary Tool	Hydraulic "nipping" tool or manual applicator.	Manual hammer or press.	Wrench for the bolt.
Visual Identification	Asymmetric "Z" or "S" shape.	Inverted "V" or "nabla" (∇) shape.	Distinctive shape secured by a bolt.
Key Advantage	Simple, fast installation, high reliability.	Simple design, no small parts.	Very secure

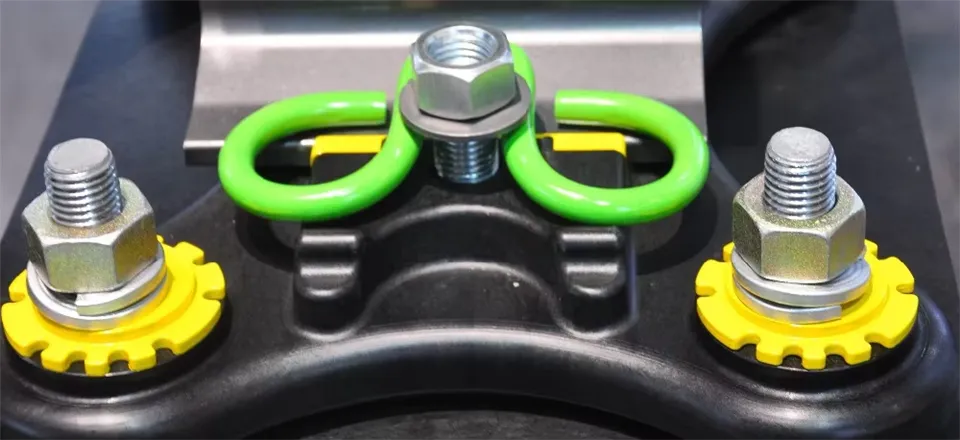

Railway Clip Fast Rail

Advantages & Disadvantages

Advantages	Disadvantages
✅ High Reliability: Proven performance in various track applications worldwide.	❌ Specialized Tools Required: Installation and removal often require specific tools.
✅ Excellent Holding Power: Maintains strong grip under high dynamic loads.	❌ Risk of Improper Installation: If not installed correctly, can lose clamping force.
✅ Low Maintenance: Designed for long service life with minimal adjustment.	❌ Cost: Can be more expensive than traditional fastening systems.
✅ Vibration Reduction: Effectively dampens noise and vibration, ideal for urban areas.
