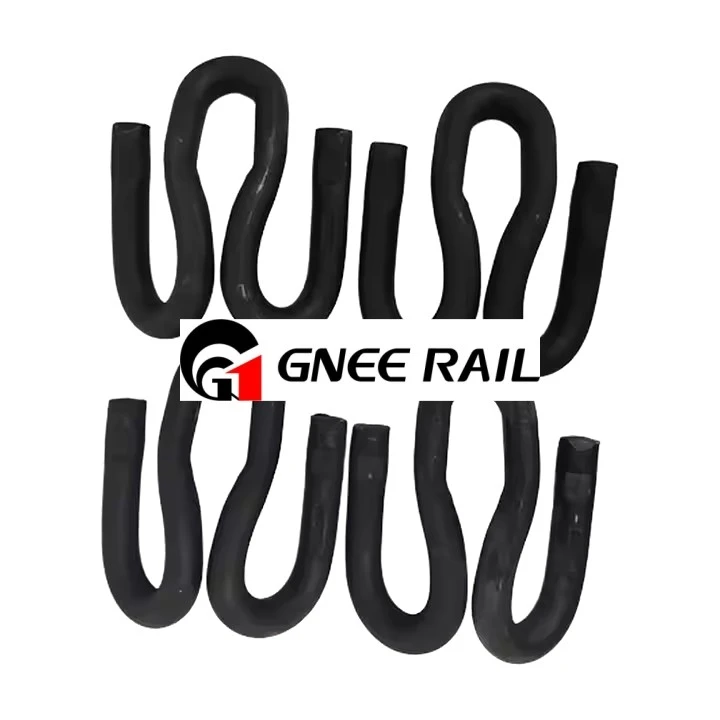

Railway Fast Clips 16

Pandrol's Fast Clip system is recognized as one of the most innovative solutions in rail fastening. The Rail Fast Clip 16 GNEE, a high-elasticity, boltless fastening system, ensures secure installation with excellent stability and vibration resistance. It provides durable rail-to-sleeper connections, facilitating efficient, cost-effective track construction while minimizing maintenance needs. GNEE Rail is a trusted and professional supplier of rail clips. We offer a range of fast clips, including Rail Fast Clip 16, 1500, 1501, 1502, 1306, 1508, 1504, 1600, and 1605. Additionally, we supply other types, such as Pandrol E Clip, SKL Clip, KPO Clamp, Nabla Clip, and Deenik Clip. All products meet international standards and can be customized to suit your requirements. Feel free to contact us!

product-1200-800

Railway Fast Clip 16 material specification

Item Name	Elastic Rail Clip
Type	Fast clip (16, 1500, 1501, 1502, 1306,1508,etc)
	E clip (e1809, e2006,e2007,e2009,etc)
	Or the type by customers' drawings
Material	60Si2MnA	60Si2CrA	55Si2Mn	38Si7
Chemical composition(%)	C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03	C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03	C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03	C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03
Hardness	For e clip: 44-48HRC For skl clip: 42-47HRC
Fatigue life	for Dia.18 is 3 millions cycles without breaking for Dia.20 is 5 millions cycles without breaking
Surface	plain (oiled), Oxide black, color painting, HDG, Zinc Plating...
Standard refers	DIN17221, BS970, GB/T1222

Railway Fast Clip 16 technical parameters

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break
