Steel Rail Fast Clips

Steel Rail Fast Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.
Send Inquiry
Chat Now
Description
Technical Parameters

Types and Applications of Railway Fast Clips

Type Model Characteristics Application

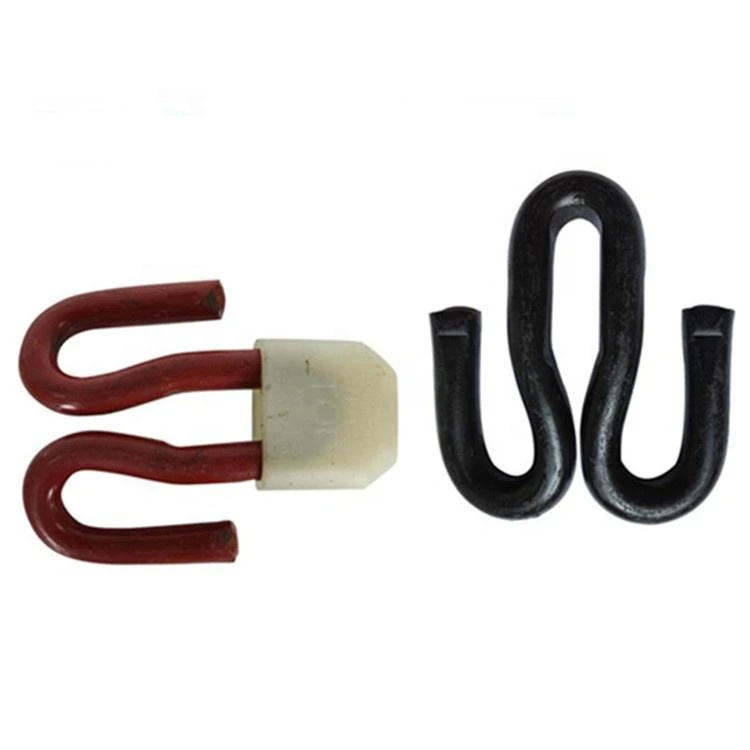

Fast Clip FCL 504 Φ15 mm, with insulating caps General areas
Fast Clip FCL 502 Φ15 mm, without insulating caps Joint bars
Fast Clip FCL 306 Φ13 mm, with 12133 - type insulating caps Areas with small resistance

Steel Rail Fast Clips

Technical Parameters of Some Railway Fast Clips

Model Wire Diameter Weight per Piece Material
PR309 Φ16 mm 0.43 kg/pc 60Si2MnA
E1809 Φ20 mm 0.61 kg/pc 60Si2MnA
E1813 Φ18 mm 0.62 kg/pc 60Si2MnA
SKL1 Φ13 mm 0.48 kg/pc 60Si2CrA
SKL3 Φ13 mm 0.48 kg/pc 60Si2CrA
SKL12 Φ13 mm 0.53 kg/pc 38Si7
SKL14 Φ13 mm 0.53 kg/pc 60Si2MnA
