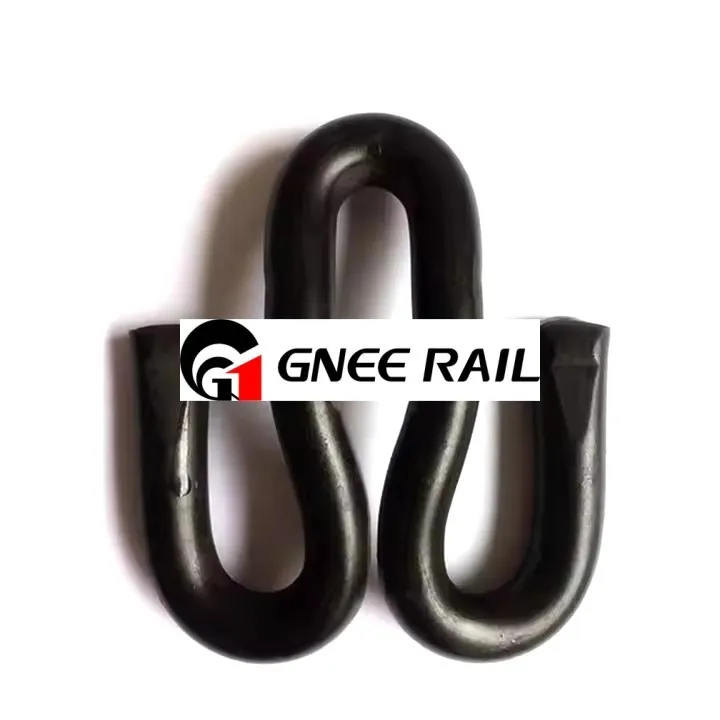

Track Fast Clips 1504

Pandrol's Fast Clip system epitomizes innovation in rail fastening. GNEE Rail's Fast Clip 1504 GNEE is a boltless, high-elasticity fastening solution offering superior vibration resistance and stability for rail-to-sleeper connections. Ideal for efficient, cost-effective track construction, it reduces maintenance needs and maximizes performance. GNEE Rail provides a wide range of fast clips, including Rail Fast Clip 16, 1500, 1501, 1502, 1306, 1508, 1504, 1600, and 1605. Additional offerings include systems like Pandrol E Clip, SKL Clip, KPO Clamp, Nabla Clip, and Deenik Clip. Fully compliant with global standards, our products can be customized. Reach out to us today!

fast rail clip

Track Fast Clip system specification

No.	Item	Performance Index
1	Applied rail type	GB standard 60kg steel rail
2	Rail gauge	1435mm
3	Rail bottom slope	1:40 rail bottom slope is placed on the railway sleeper
4	Longitudinal resistance of rails	In general, the longitudinal resistance of each set of rail fastener and rails is larger than 9kN;
5	Elasticity of rail fastening system	The rail pad has a static stiffness of 50 to 70 kN/mm.
6	Fatigue performance	After 3 million load cycles, the fastener system has no damage, and the buckle pressure changes is less than 20%; the longitudinal resistance of the rail changes is less than 20%; the static stiffness of the joint changes is less than 25%.
7	Insulation resistance	The fastener system is tested according to EN13146-5, and the insulation resistance between the two rails is greater than 5kΩ.
8	Harsh environmental conditions	The fastener system can be successfully disassembled with a manual disassembly tool after the 300h salt spray test described in EN13146-6.
9	Adjustment amount between left and right of rail	The adjustment of the left and right position of the single-strand rail: -4~+2mm; Rail gauge adjustment: -8 ~ +4mm, adjustment level is 1mm.
10	Rail height position	The adjustment amount is 0mm.
11	Buckle pressure and spring range	FC1504 type spring bar: buckle pressure is 10kN, spring range is 12mm; FC1306 type spring bar: buckle pressure is 3kN.
12	Pulling resistance of the embedded parts	pulling resistance of the embedded iron seat in the railway sleeper is not less than 60kN.

Track Fast Clip 1504 technical parameters

Item No	Material	Diameter	Clip length	Clip width	Weight	HRC	Pressure	Fatigue Test
E1,E2,E3	60Si2Mn	ø18			0.8	44-48	≥9.5KN	5000000 times without break
E1609	60Si2Mn	ø18	93±3		0.43	44-48	≥9.5KN	5000000 times without break
E1809	60Si2Mn	ø18	104±3		0.62	44-48	≥9.5KN	5000000 times without break
E1817	60Si2Mn	ø18	104±3	37.5±3.0	0.62	44-48	≥9.5KN	5000000 times without break
E2001	60Si2Mn	ø18			0.6	44-48	≥9.5KN	5000000 times without break
E2007	60Si2Mn	ø18	105±5	38max	0.62	44-48	≥9.5KN	5000000 times without break
E2009	60Si2Mn	ø18	106±3	37.5	0.65	44-48	≥9.5KN	5000000 times without break
E2055	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2056	60Si2Mn	ø20	106±3	56.6±3.0	0.8	44-48	≥9.5KN	5000000 times without break
E2063	60Si2Mn	ø20	110.5	53.5	0.8	44-48	≥9.5KN	5000000 times without break
PR309	60Si2Mn	ø19	130		0.91	44-48	≥9.5KN	5000000 times without break
PR401	60Si2Mn	ø20	127±3	38.1±3.0	0.97	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø19			0.8	44-48	≥9.5KN	5000000 times without break
PR85	60Si2Mn	ø19	88±3		0.8	44-48	≥9.5KN	5000000 times without break
PR415	60Si2Mn	ø20			0.8	44-48	≥9.5KN	5000000 times without break
PR601	60Si2Mn	ø20				44-48	≥9.5KN	5000000 times without break
DI	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E18	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E19	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
E20	60Si2Mn	ø18	100±3			44-48	≥9.5KN	5000000 times without break
SKL1	60Si2Mn	ø13	133±2.3		0.48	44-48	≥9.5KN	5000000 times without break
SKL3	60Si2Mn	ø13	120±2		0.48	44-48	≥9.5KN	5000000 times without break
SKL12	60Si2Mn	ø13			0.53	44-48	≥9.5KN	5000000 times without break
SKL14	60Si2Mn	ø13	155±2		0.53	44-48	≥9.5KN	5000000 times without break
Fast Clip-1508	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast clip-1501	60Si2Mn	ø15			0.58	44-48	≥9.5KN	5000000 times without break
Fast Clip-16	60Si2Mn	ø16			0.6	44-48	≥9.5KN	5000000 times without break
