Nable Rail Clip

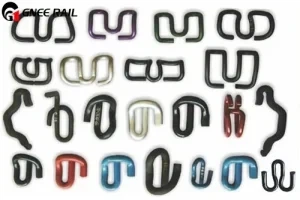

Rail clips, also known as elastic rail clips, railway track clips, railroad rail clips, rail e-clips, or railway sleeper clips, are essential components used to secure rails to the underlying base, such as concrete sleepers or wooden ties.
The Rail Nabla Clip is manufactured from high-grade 60Si2MnA or 60Si2CrA steel, it features a thickness of either 4mm or 4.5mm. It is widely used in the Nabla Rail Fastening System.
GNEE Rail supplies a wide selection of railway clips, designed to meet various specifications and customized to fit your individual needs. To learn more about how we can offer custom rail clips for you, please contact us.
Nable Rail Clip specification
Model:
Rail Nabla Clip
Type:
railway clip, elastic rail clip, rail track clips, railroad rail clips, rail clip, rail e clip, railway sleeper clips
Brand:
GNEE rail
Thickness:
4mm or 4.5mm
Material:
60Si2MnA, 60Si2CrA
Application:
Nabla Rail Fastening System
Nable Rail Clip material specification
| Series | Type | Hardness | Material | Fatigue life | Surface |
| E rail clip | E1,E2,E3 | 44-48HRC | 60Si2MnA: C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 60Si2CrA: C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 55Si2Mn: C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 38Si7: C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
For Dia.18 is 3 millions cycles without breaking. For Dia.20 is 5 millions cycles without breaking. |
Plain (oiled), Oxide black, color painting or upon customer requirement. |
| E1609 | |||||
| E1809 | |||||
| E1817 | |||||
| E2001 | |||||
| E2006 | |||||
| E2009 | |||||
| E2055 | |||||
| E2056 | |||||
| Vossloh clip& Forged rail clip |
SKL1 | 42-47HRC | |||
| PR rail clip | PR309 | 44-48HRC | |||
| PR401 | |||||
| PR601 | |||||
| PR85 | |||||
| We can also manufacture customized rail clips following your drawings or samples! | |||||
Nable Rail Clip application
