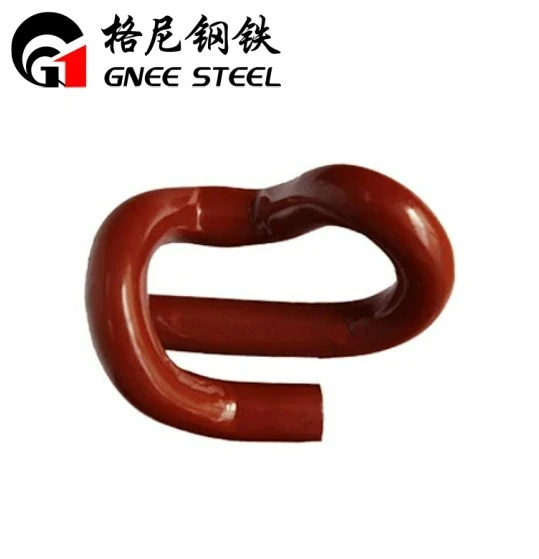

Rail E1609 Clip
The Rail E-clip, also known as rail clips or elastic rail clips, is a type of rail fastening clip used extensively in railway track systems worldwide. It is designed to secure rails to wooden or concrete sleepers, ensuring stability and alignment.
The E1609 rail clip is made from 60Si2Cr, 60Si2Mn, and 55SiMn materials, meets international standards including BS970, GB/T 1222, and DIN 17221. It features a hardness rating of HRC 44-48 and can withstand toe loads ranging from 500 to 700 kgf, making it suitable for various railway applications.
GNEE Rail provides a wide selection of railway clips designed to meet diverse specifications according to your specific needs. Please reach out to us for a discussion on how we can help fulfill your customized rail clip requirements.
Rail E1609 Clip specification
Model:
E1609 Clip
Type:
railway clip, elastic rail clip, rail track clips, railroad rail clips, rail clip, rail e clip, railway sleeper clips
Brand:
GNEE rail
Material:
60Si2Cr, 60Si2Mn, 55SiMn
Standard:
BS970, GB/T 1222, DIN 17221
Production properties:
Hardness HRC 44-48,
Toe load 500-700kgf
Application:
Rail E clip fastening system
Rail E1609 Clip technical parameters
| Item No | Material | Diameter | Clip length | Clip width | Weight | HRC | Pressure | Fatigue Test | Countries |
| E1,E2,E3 | 60Si2Mn | ø18 | 0.8 | 44-48 | ≥9.5KN | 5000000 times without break | China | ||
| E1609 | 60Si2Mn | ø18 | 93±3 | 0.43 | 44-48 | ≥9.5KN | 5000000 times without break | Southeast Asia |
Rail E1609 Clip application
