↵Rail Nabla Clip Fastening System

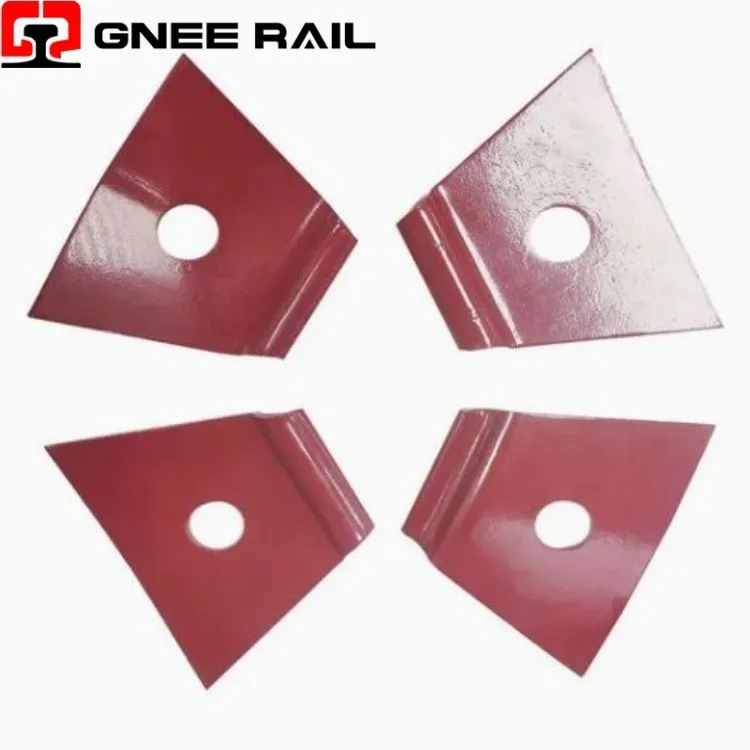

The Railway Nabla Clip is a resilient spring fastener named for its inverted delta (∇) shape, engineered for concrete sleeper track systems. Manufactured from high-strength spring steel grades such as 60Si2MnA, this clip delivers consistent clamping force through elastic deflection when secured with screw spikes. Its symmetrical profile provides superior lateral force absorption and electrical insulation, making it ideal for tight-radius curves, heavy-haul routes, and high-speed lines including French TGV networks
Technical Specifications:
| Parameter | Specification | Performance Indicator |
|---|---|---|
| Geometric Shape | Inverted delta (∇) / V-profile | Symmetrical stress distribution |
| Material Grade | 60Si2MnA, 60Si2CrA | 42–47 HRC hardness |
| Clamping Force (Toe Load) | 11–14 kN per clip | <15% relaxation after 3M cycles |
| Fatigue Life | 5 million cycles (standard) | 200 million cycles (C1 variant) |
| Compliance Standard | EN 13481-2 / EN 13481-5 | Category C for concrete sleepers |
|
|
|---|
Installation & Maintenance Perspective:
- The inverted-V (nabla) profile creates symmetrical stress distribution along both legs, eliminating torsional stresses common in asymmetric clips .
- Vertical force vector optimization maximizes resistance to rail uplift while reducing lateral forces on sleeper shoulders .
- The elastic deflection capacity accommodates thermal expansion across the -40°C to +80°C temperature range without force relaxation .
Maintenance & Operational Perspective
- The complete assembly comprises 2 Nabla clips, 2 insulators, 2 screw spikes, and 2 spring washers per rail seat .
- Installation requires tightening anchor screws to a specified torque, ensuring consistent clamping force application .
- Screw spikes (Grade 5.6, 35# steel) provide tensile strength ≥500 MPa with 90° cold bend capability .
Gnee Professional supplier
