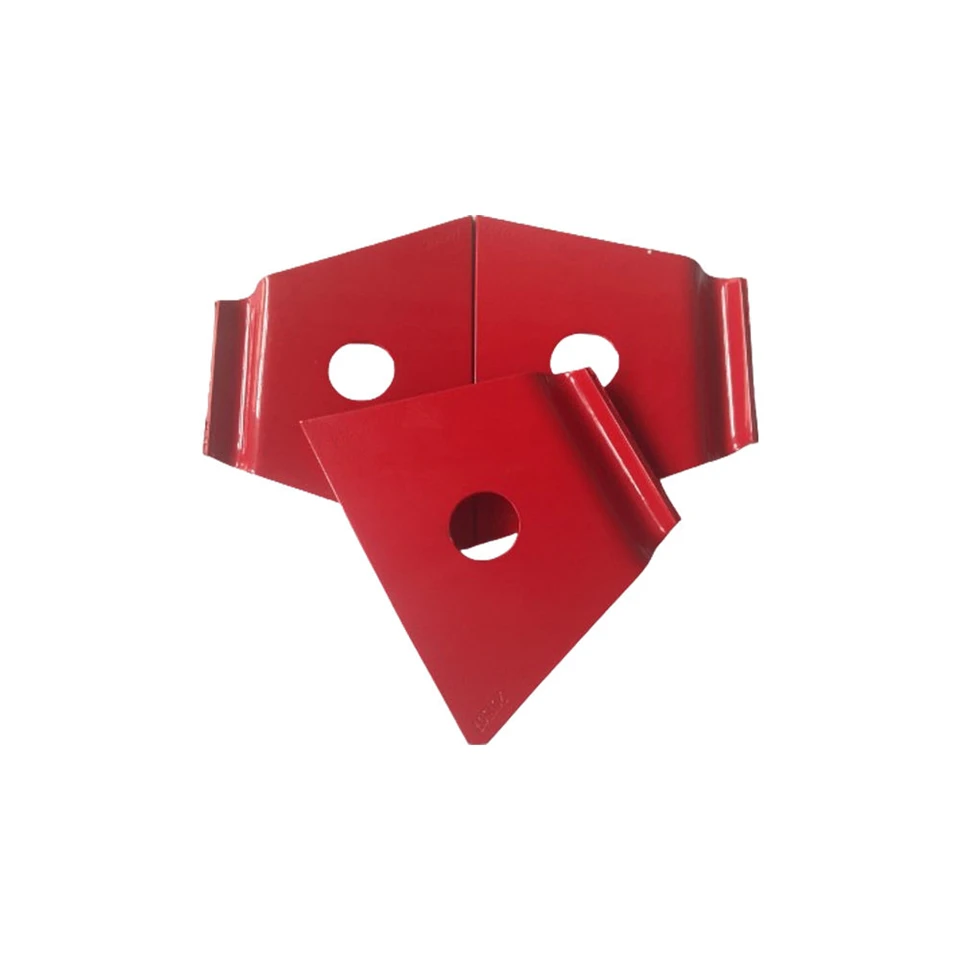

Railway Nabla Spring Clip - Technical Specification
| Category | Parameter | Description / Specification |
|---|---|---|
| Primary Function | To provide clamping force in rail fastening systems for concrete sleepers. | |
| Key Application | Chinese High-Speed Rail (CRH lines), Heavy-Haul Railways, and other high-performance tracks. | |
| Physical & Mechanical Properties | Material | 60Si2MnA or 55SiCr High-Carbon Spring Steel. |
| Hardness | 41-46 HRC (Rockwell C Scale). | |
| Tensile Strength | ≥ 1570 MPa. | |
| Clamping Force | ~11 - 14 kN (e.g., ~12.5 kN for RN-18 type). | |
| Fatigue Life | ≥ 5 million cycles (tested per TB/T 3395 / EN 13146). | |
| Installation & Tooling | Installation Tool | Hydraulic Tensioning Tool / Automatic Clip Layer. |
| Installation Force | Requires high force (e.g., ~30 kN) to compress and insert into the shoulder. | |
| Compatibility | Sleeper Type | Pre-stressed concrete sleepers (e.g., Type III, Type IIIa) with embedded shoulders. |
| Rail Sections | Primarily CHN 60 rail (60 kg/m). |
Key Advantages of Nabla Clips:
- High Clamping Force and Stability: Its geometric design generates a very high and stable clamping force, which is essential for maintaining track geometry at extremely high speeds (350+ km/h).
- Excellent Fatigue Resistance: Manufactured from premium spring steel and through a rigorous heat-treatment process, it can withstand hundreds of millions of load cycles without failure.
- Proven Reliability: It is the backbone of the largest High-Speed Rail network in the world (China's HSR), demonstrating its exceptional performance and reliability in the most demanding service conditions.
- Robust Design: The nabla (∇) shape provides a robust and secure fit into the shoulder of the sleeper, minimizing the risk of dislodgement.
