↵Rail Nabla Clip Fastening System

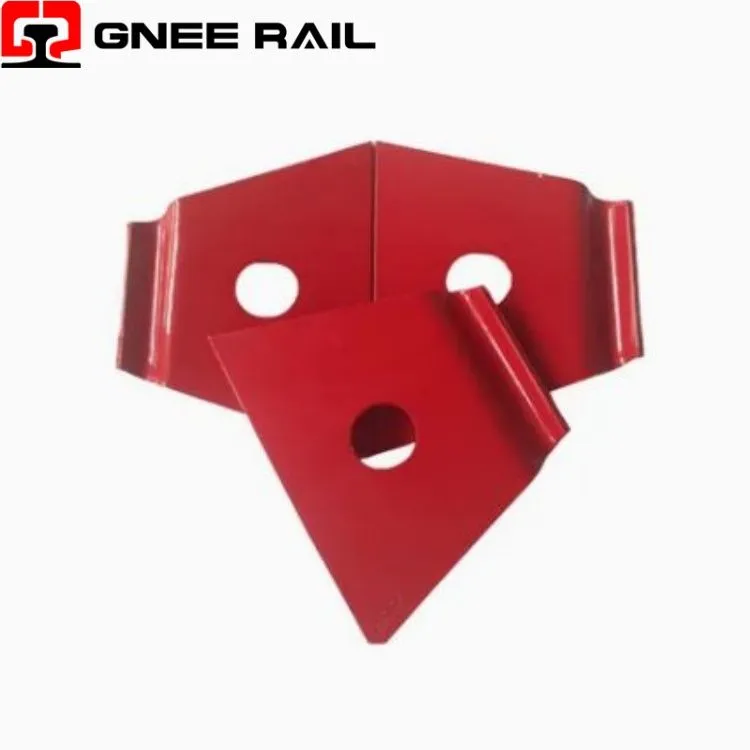

The Railway Nabla Clip is a symmetrical, double-arch resilient fastening component cold-formed from high-grade flat spring steel, named for its distinctive resemblance to the Greek letter ∇ (nabla). Unlike cylindrical wire clips that apply point contact pressure, the Nabla's flat-section geometry creates a broad, rectangular bearing surface that distributes clamping force evenly across the rail foot, preventing localized deformation while maintaining consistent toe load through millions of loading cycles.
Technical Specifications:
|
|---|
Installation & Maintenance Perspective:
Zero-Waste Blanking: Clips are cut from flat steel strip with minimal material loss between blanks, unlike cast or machined components that generate scrap.
Cold-Forming Precision: The bending process work-hardens critical stress zones, eliminating the need for separate heat treatment in some applications.
Consistent Spring Rate: Flat-stock forming produces highly repeatable spring characteristics across production batches, ensuring predictable clamping force.
Maintenance & Operational Perspective
- Broad Bearing Surface: The flat-section design spreads clamping pressure over approximately 3-4 times the area of equivalent round-wire clips, reducing contact stress on the rail foot.
- Indentation Prevention: Even distribution eliminates the "brinelling" effect where high point loads create depressions in the rail surface under heavy traffic.
- Rail Foot Preservation: By avoiding localized stress concentrations, the clip helps maintain rail profile integrity, delaying grinding and replacement intervals.
