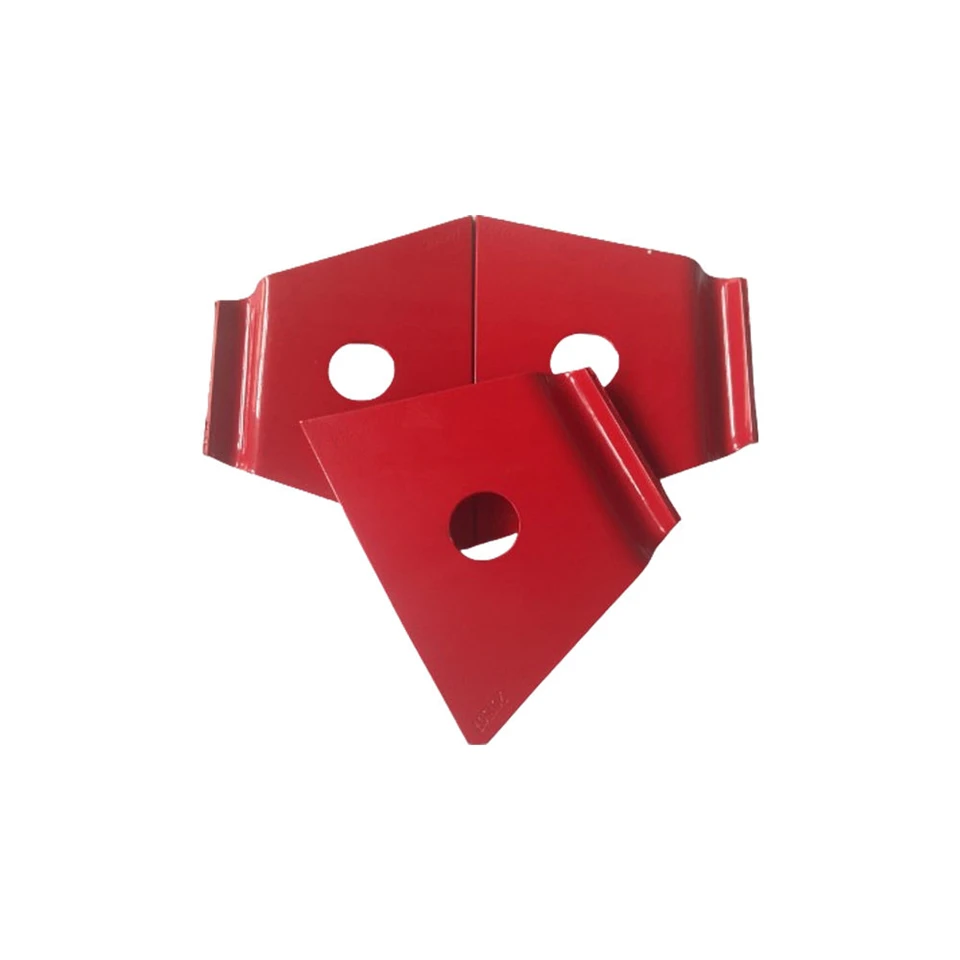

↵Rail nabla clip Fastening System
The Railway Nabla Clip (named after the inverted Greek delta symbol ∇) is a three-pronged elastic fastening system designed with a triangular geometry that provides multidirectional restraint through integrated spring action across all three contact planes.
Unlike conventional two-point clips, its triangular design creates a self-stabilizing force system where each prong contributes to both vertical clamping and lateral guidance, eliminating the need for separate shoulder components in some configurations.
Technical Specifications:
| Apex Angle | Prong Length Ratio | Primary Material | Design Multiaxial Stiffness | Typical Service Environment | |
|---|---|---|---|---|---|
| 90° Narrow | 1:1.2:1 (asymmetric) | 55SiCr7 | High vertical, moderate lateral | Elevated guideways, monorails | |
| 100° Standard | 1:1:1 (symmetric) | 60Si2CrA | Balanced tri-directional | Mainline mixed traffic | |
| 110° Wide | 1:0.9:0.9 (modified) | 52CrMoV4 | High lateral, moderate vertical | Sharp curves, turnout leads | |
| 90° Heavy | 1:1.5:1 (reinforced) | 60Si2MnV | Extreme vertical | Heavy haul mining lines | |
| 100° Coastal | 1:1:1 (corrosion-treated) | 50CrV4 + coating | Balanced with corrosion focus | Marine environments, salt routes |
Functional & Engineering Perspective
Direct fixation tracks on elevated structures where minimal fastening components reduce weight and where the clip's triangular geometry provides inherent resistance to uplift forces from wind and train aerodynamics.
Rail networks in expansive soil regions (clay, permafrost) where ground movement creates complex track distortion patterns requiring fasteners with multidirectional compensation capabilities.
High-acceleration/deceleration zones near stations and terminals where longitudinal forces dominate, and the Nabla's three-point engagement distributes these forces more effectively than linear clips.
Maintenance & Operational Perspective
- Performance degradation follows predictable geometric patterns where inspection focuses on measuring the angular deflection of prongs rather than simple height loss, with intervention typically needed at 8-12° of permanent deformation.
- Seasonal performance adjustments are unnecessary as the triangular design naturally compensates for temperature-induced rail movement through proportional force redistribution among the three prongs.
- Damage progression is highly visible-cracks or fractures typically originate at the central junction and propagate outward, allowing easy identification during routine visual inspections.
