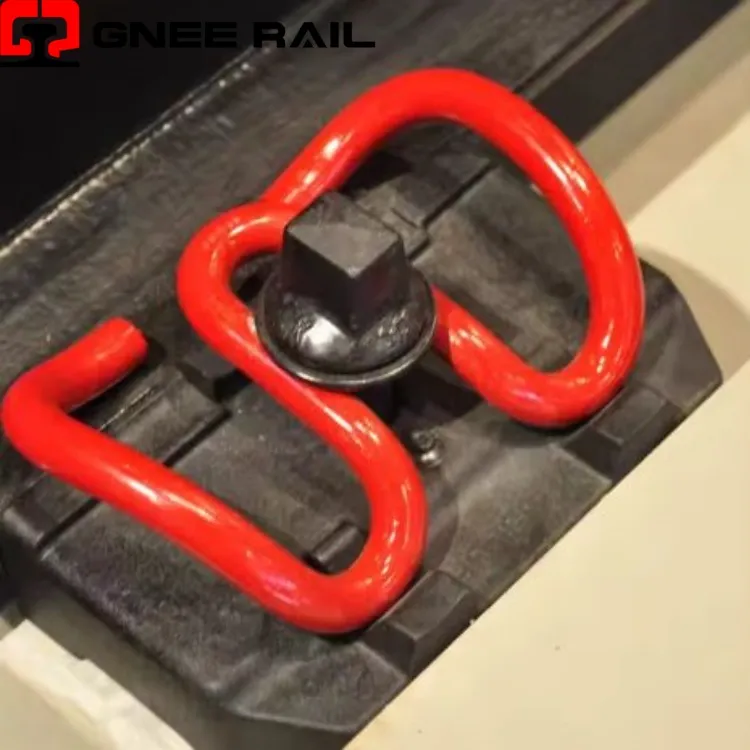

Rail skl Clip Fastening System
The Railway SKL Clip is a high-tensile elastic fastener used for securing rails to concrete sleepers in modern track systems. Manufactured from chromium-alloyed spring steel, its patented helical leg design converts rotational force into precise clamping pressure. This clip provides excellent vibration damping and thermal movement accommodation. It is the preferred choice for high-speed, metro, and heavy-haul railways.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Designation | Railway SKL Clip – Torsional Spring Fastener |
| Material Grade | 51CrV4 / 60Si2CrVA / EN 10089 |
| Wire Diameter | 14.5 mm – 16.0 mm standard range |
| Surface Finish | Zinc flake / Geomet / Delta-Protekt |
| Clamping Force | 12 – 18 kN per clip nominal |
| Elastic Travel | 10 – 14 mm working range |
| Rotation Requirement | 110° – 135° from free position |
| Fatigue Limit | ≥ 6 million cycles without cracking |
Installation & Maintenance Perspective:
- Converts rotational torque into linear clamping force through helical design.
- Provides consistent spring rate across entire deflection range.
- Returns to original shape after load removal without permanent set.
- Absorbs dynamic impacts protecting sleepers from fatigue damage.
- Maintains force stability through millions of loading cycles.
Maintenance & Operational Perspective
- Requires calibrated torque tools for precise tension application.
- Achieves correct force when rotated to specified angle mark.
- Allows torque verification immediately after installation.
- Prevents over-tensioning through defined rotation limits.
- Enables automated installation with programmable equipment.
