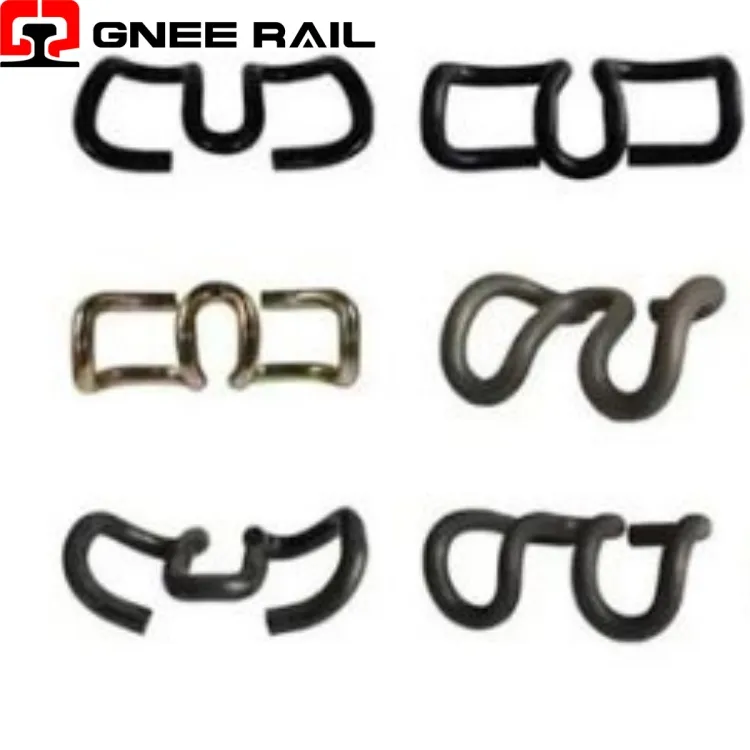

Rail skl Clip Fastening System
The Railway SKL Clip is a precision-engineered elastic fastener designed for demanding rail fastening applications. Forged from high-grade spring steel, its unique S-shaped geometry with twin legs delivers exceptional clamping force and deflection capacity. This clip utilizes rotational installation to achieve pre-determined tension. It serves as the standard fastening solution for high-speed railways and heavy-haul corridors worldwide.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Name | Railway SKL Clip – Elastic Rail Fastener |
| Steel Composition | 60Si2CrVA / 38Si7 / Spring steel alloy |
| Forming Method | Precision hot coiling with stress relief |
| Surface Treatment | E-coat / Zinc-aluminum flake / Cathodic coating |
| Nominal Wire Size | 13 mm – 15 mm diameter |
| Clamping Load | 10 – 16 kN (system dependent) |
| Deflection Capacity | 11 – 15 mm elastic travel |
Installation & Maintenance Perspective:
- Transmits clamping force through dual contact points on rail foot.
- Distributes load evenly preventing localized stress concentration.
- Balances vertical and lateral forces during train passage.
- Accommodates rail tilt through articulated contact surfaces.
- Maintains consistent pressure despite minor track settlement.
Maintenance & Operational Perspective
- Achieves specified tension through controlled angular rotation.
- Verified using torque-angle monitoring during mechanized installation.
- Eliminates guesswork through clearly defined insertion position.
- Supports automated track laying with programmable applicators.
- Provides repeatable results across thousands of installations.
