Rail skl Clip Fastening System

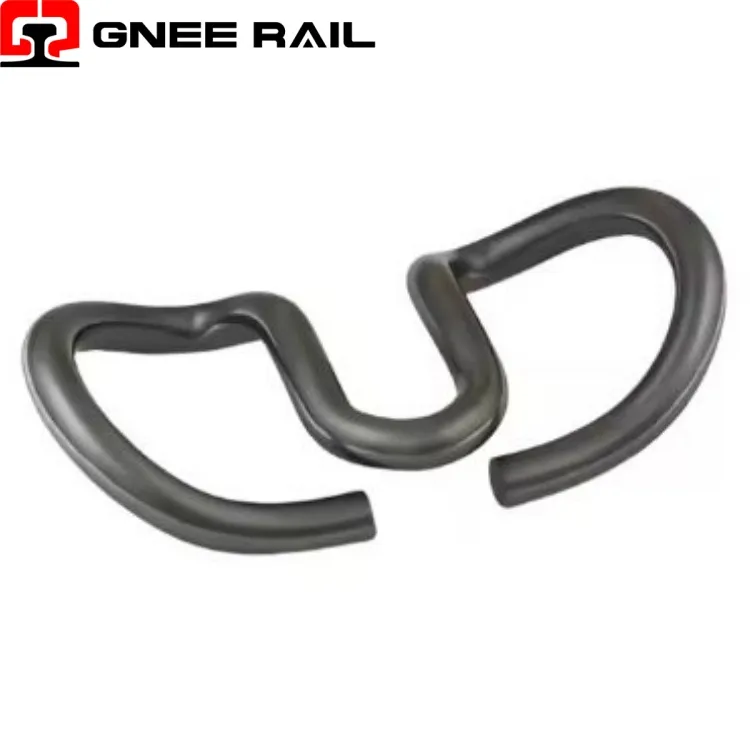

The Railway SKL Clip is a torsion-resistant elastic fastener engineered for demanding railway track applications. Formed from high-grade silicon-manganese spring steel, it delivers consistent clamping force through its unique helical leg design. This clip secures rails firmly to concrete sleepers while accommodating vertical and lateral track movements. Its proven performance makes it the preferred choice for high-speed passenger and heavy-haul freight lines globally.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Name | Railway SKL Clip – Torsional Elastic Fastener |
| Material Composition | 60Si2MnA / 38Si7 / EN 10089 Grade |
| Wire Diameter | 14 mm – 16 mm (depending on clip size and application) |
| Forming Process | Hot coiling with precision heat treatment |
| Protective Coating | Cathodic e-coat / Zinc-aluminum flake / Phosphating |
| Clamping Force Range | 11 – 15 kN (static toe load per clip) |
Installation & Maintenance Perspective:
- Utilizes torsional spring principle for efficient energy storage and release.
- Maintains stable toe load even after prolonged exposure to dynamic track forces.
- Accommodates rail lift-off during extreme wheel loading without losing contact.
- Provides progressive resistance that matches track stiffness requirements precisely.
- Delivers consistent performance across varying track curvature and superelevation conditions.
Maintenance & Operational Perspective
- Produced through controlled hot coiling process ensuring uniform material properties.
- Subjected to 100% dimensional inspection using laser measurement systems.
- Undergoes rigorous hardness testing across multiple points on each batch.
- Manufactured with tight tolerances ensuring interchangeability across production lots.
- Traceable from raw material certification through final coating application.
