SKL Clips System

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

↵Rail skl clip Fastening System

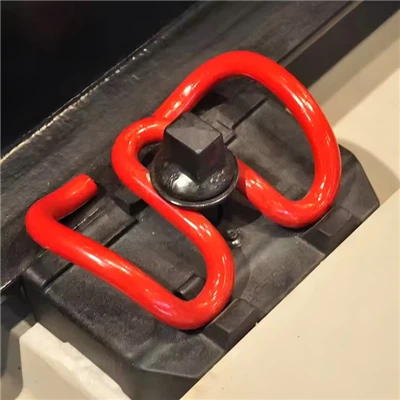

The Railway SKL Clip is a precision-engineered "omega"-shaped elastic fastening component that forms the critical interface between the rail and the concrete sleeper in modern track systems. Operating on a torsion beam principle, this clip is driven onto a shoulder to create a sustained, calibrated spring force that presses the rail foot firmly against the sleeper. Beyond mere fixation, it functions as a mechanical shock absorber, continuously adapting to traffic loads and thermal stresses to preserve the geometric integrity of the track and ensure a stable, safe pathway for rolling stock.

Technical Specifications:

Feature Category	Specification / Detail	Functional Benefit
Manufacturing Process	Hot Forged & Precision Heat Treated	Creates optimal grain flow and consistent mechanical properties throughout.
Surface Protection	Geomet/Thermal Diffusion Coating	Provides superior salt spray resistance for coastal and winter-salting routes.
Load Capacity	Heavy Haul Rated (up to 40-ton axle loads)	Suitable for mineral railways and freight corridors with extreme demands.
Temperature Range	Operational from -40°C to +80°C	Maintains clamping force integrity across extreme seasonal and regional variations.

Installation & Maintenance Perspective:

Resilient Metallurgy: Forged from specialized spring steel alloys that undergo rigorous heat treatment to achieve optimal hardness and ductility.

Corrosion Management: Protected by advanced surface treatments that create a barrier against electrolysis and environmental corrosion in humid tunnel or coastal environments.

Fracture Prevention: Engineered with stress distribution geometry that eliminates concentration points, preventing micro-crack propagation under repeated heavy-haul loading.

Maintenance & Operational Perspective

Standardized Geometry: Manufactured to strict international rail profile specifications, ensuring interchangeability across different rail networks and contractors.
Compact Packaging: Designed with a space-efficient form factor that maximizes pallet density, reducing shipping costs and storage footprint.
Batch Traceability: Each production batch carries metallurgical certificates and traceability codes, simplifying quality assurance and inventory management.
